Urbaline LED

$0.00

A robust luminaire designed to withstand extreme vandalism and marine corrosion thanks to its treatment approved to the Qualanod quality mark, Class 20.
Ideal for public buildings and spaces requiring increased protection such as railway and bus stations, pedestrian subways etc.

Features

– High impact resistance: IK10++/ 150 joules
– Reinforced aluminium end caps
– Straight or angled corner versions
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Average rated LED life: >72,000hrs (L80/B10)
– Photobiological hazard: RG0

IP65 | IK10 | LED | CLASS I | CE

A robust luminaire designed to withstand extreme vandalism and marine corrosion thanks to its treatment approved to the Qualanod quality mark, Class 20.
Ideal for public buildings and spaces requiring increased protection such as railway and bus stations, pedestrian subways etc.

Features

– High impact resistance: IK10++/ 150 joules
– Reinforced aluminium end caps
– Straight or angled corner versions
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Average rated LED life: >72,000hrs (L80/B10)
– Photobiological hazard: RG0

IP65 | IK10 | LED | CLASS I | CE

Technical Information

Performance

Light source: LED

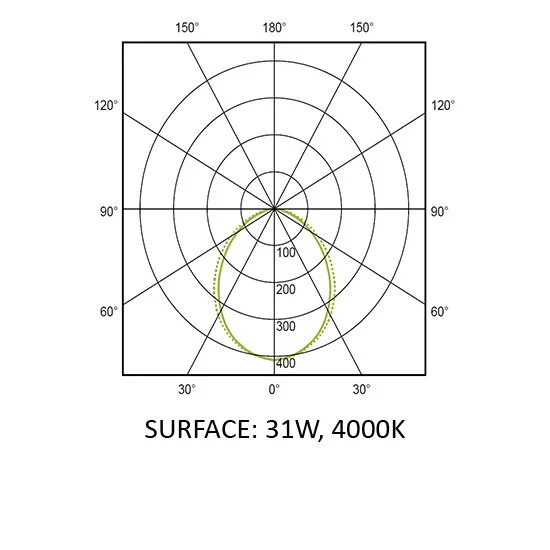

Distribution: Symmetric
Luminaire output: 2050 – 7250lm
Luminaire efficiency: ≥97lm/W
CRI: >80

Material

Body: 4mm thick marine grade 6060 aluminium
Finish: Qualanod 20μ anodised aluminium
Diffuser: Opal polycarbonate TP(a)
External fixings: M5 stainless steel screws with 2-point tamper proof heads
Wiring: Dual entry for 3 x 1.5mm² cables
Mounting: Surface

Options

370mm length
Lower lumen outputs and 3000K
Microwave sensors
Slave configurations


URBALINE ANGLED.jpg
Urbaline line.png
Product Codes
LAMPCOLOUR
TEMP		DELIVERED
LUMENS		LENGTHSURFACE
STANDARD		SURFACE
EMERGENCY		ANGLED
STANDARD		ANGLED
EMERGENCY
21W4000K2050lm65074200601742006917420220174202291
43W4000K4150lm65074200801742008917420240174202491
31W4000K3100lm93074201001742010917420260174202691
62W4000K6250lm93074201201742012917420280174202891
43W4000K4150lm121074201401742014917420300174203091
70W4000K7250lm121074201601742016917420320174203291


Downloads
Datasheet
LDT Files
