Tosca Bollard LED

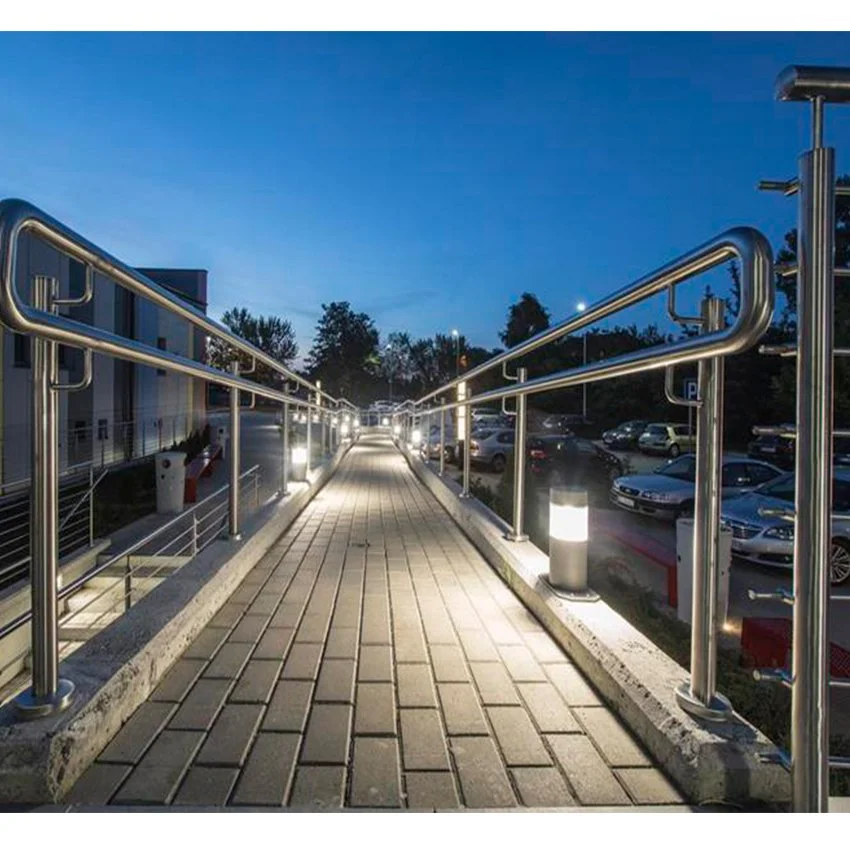

A general purpose, decorative bollard luminaire equipped with the latest generation of LEDs to effectively illuminate paths, parks, recreational and residential areas.
Features
– High resistance to corrosion and UV
– 360 degree illumination
– Average rated LED life: >60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP65 | IK08 | LED | CLASS I | CE
A general purpose, decorative bollard luminaire equipped with the latest generation of LEDs to effectively illuminate paths, parks, recreational and residential areas.
Features
– High resistance to corrosion and UV
– 360 degree illumination
– Average rated LED life: >60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP65 | IK08 | LED | CLASS I | CE
A general purpose, decorative bollard luminaire equipped with the latest generation of LEDs to effectively illuminate paths, parks, recreational and residential areas.
Features
– High resistance to corrosion and UV
– 360 degree illumination
– Average rated LED life: >60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP65 | IK08 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Luminaire output: 1650 – 2000lm
CRI: >80
Material
Body: Die-cast aluminium
Finish: Light grey/ Anthracite grey/ Black
Diffuser: Clear polycarbonate
External fixings: Stainless steel
Mounting: Surface on concrete foundation
Options
4000K
Coloured filters – red, green or blue
CRI >90
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | ANTHRACITE GREY | LIGHT GREY | BLACK |
|---|---|---|---|---|---|---|
| 15W | 3000K | 1485lm | Ø200 x 300 | 76900101 | 76900901 | 76901701 |
| 15W | 4000K | 1650lm | Ø200 x 300 | 76900201 | 76901001 | 76901801 |
| 15W | 3000K | 1485lm | Ø200 x 900 | 76900301 | 76901101 | 76901901 |
| 15W | 4000K | 1650lm | Ø200 x 900 | 76900401 | 76901201 | 76902001 |
| 18W | 3000K | 1790lm | Ø120 x 300 | 76900501 | 76901301 | 76902101 |
| 18W | 4000K | 2000lm | Ø120 x 300 | 76900601 | 76901401 | 76902201 |
| 18W | 3000K | 1790lm | Ø120 x 900 | 76900701 | 76901501 | 76902301 |
| 18W | 4000K | 2000lm | Ø120 x 900 | 76900801 | 76901601 | 76902401 |
