Slimline Ring LED
A slim, elegant, hand-blown triple layer glass LED pendant available with different coloured decorative finishes. Ideal for meeting rooms and reception areas.
Features
– Homogeneous light distribution
– Average rated LED life: >138,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP40 | LED | CLASS I | CE
A slim, elegant, hand-blown triple layer glass LED pendant available with different coloured decorative finishes. Ideal for meeting rooms and reception areas.
Features
– Homogeneous light distribution
– Average rated LED life: >138,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP40 | LED | CLASS I | CE
A slim, elegant, hand-blown triple layer glass LED pendant available with different coloured decorative finishes. Ideal for meeting rooms and reception areas.
Features
– Homogeneous light distribution
– Average rated LED life: >138,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP40 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Luminaire output: 2400 – 6100lm
CRI: 80
Material
Body: Sheet steel
Finish: White/ Black/ Silver
Diffuser: Opal PMMA
Mounting: Suspension
Options
Surface mounted version
Other RAL finishes

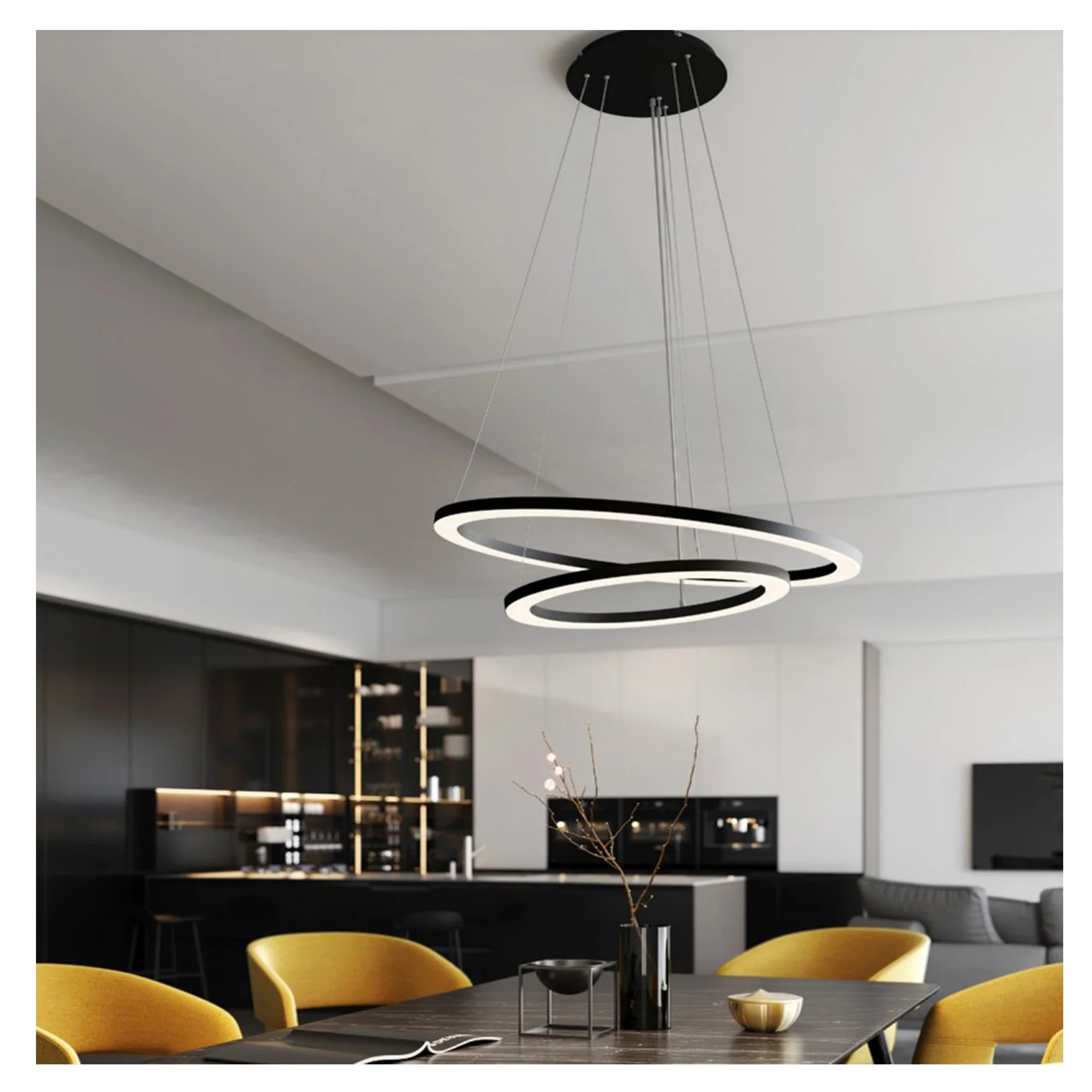

Duo version with 2 connected rings / Quadruple version
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | FINISH | DIMENSIONS | STANDARD | DALI |
|---|---|---|---|---|---|---|
| 38W | 3000K | 3230lm | White | Ø602 x 32 | 65600101 | 65600103 |
| 38W | 4000K | 3570lm | White | Ø602 x 32 | 65600201 | 65600203 |
| 38W | 3000K | 2400lm | Black | Ø602 x 32 | 65602101 | 65602103 |
| 38W | 4000K | 2590lm | Black | Ø602 x 32 | 65602201 | 65602203 |
| 53W | 3000K | 5490lm | White | Ø602 x 32 | 65600301 | 65600303 |
| 53W | 4000K | 6100lm | White | Ø602 x 32 | 65600401 | 65600403 |
| 53W | 3000K | 4260lm | Black | Ø602 x 32 | 65602301 | 65602303 |
| 53W | 4000K | 4700lm | Black | Ø602 x 32 | 65602401 | 65602403 |
| 38W | 3000K | 3230lm | White | Ø900 x 32 | 65600501 | 65600503 |
| 38W | 4000K | 3570lm | White | Ø900 x 32 | 65600601 | 65600603 |
| 38W | 3000K | 2400lm | Black | Ø900 x 32 | 65602501 | 65602503 |
| 38W | 4000K | 2590lm | Black | Ø900 x 32 | 65602601 | 65602603 |
| 53W | 3000K | 4500lm | White | Ø900 x 32 | 65600701 | 65600703 |
| 53W | 4000K | 4980lm | White | Ø900 x 32 | 65600801 | 65600803 |
| 53W | 3000K | 3340lm | Black | Ø900 x 32 | 65602701 | 65602703 |
| 53W | 4000K | 3600lm | Black | Ø900 x 32 | 65602801 | 65602803 |
| 62W | 3000K | 5060lm | White | Ø1200 x 32 | 65600901 | 65600903 |
| 62W | 4000K | 5620lm | White | Ø1200 x 32 | 65601001 | 65601003 |
| 62W | 3000K | 3900lm | Black | Ø1200 x 32 | 65602901 | 65602903 |
| 62W | 4000K | 4300lm | Black | Ø1200 x 32 | 65603001 | 65603003 |
