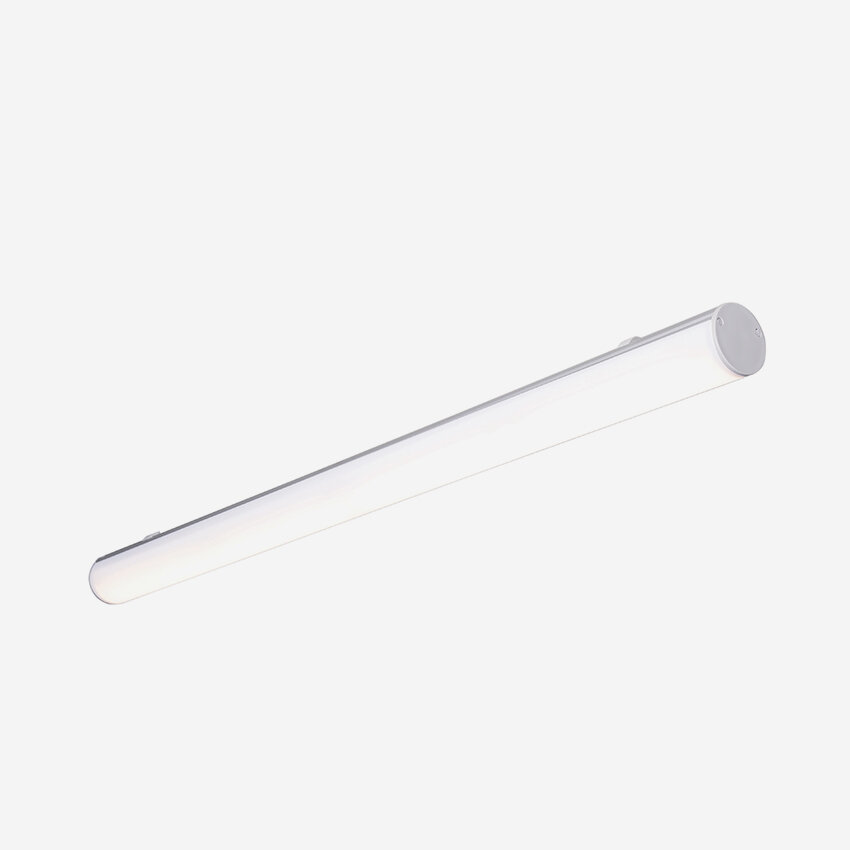

Navara Surface LED
An elegant architectural cylindrical LED luminaire, providing direct illumination. Ideal for a range of environments.
Features
– Multiple lengths and outputs available
– Average rated LED life: >60,000hrs (L70/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP40 | IK07 | LED | CLASS I | CE
An elegant architectural cylindrical LED luminaire, providing direct illumination. Ideal for a range of environments.
Features
– Multiple lengths and outputs available
– Average rated LED life: >60,000hrs (L70/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP40 | IK07 | LED | CLASS I | CE
An elegant architectural cylindrical LED luminaire, providing direct illumination. Ideal for a range of environments.
Features
– Multiple lengths and outputs available
– Average rated LED life: >60,000hrs (L70/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP40 | IK07 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Emission: Direct
Luminaire output: 2042 – 7116lm
CRI: >80
Beam angle: 120 degrees
Material
Body: Aluminium
Finish: Anodised aluminium
Diffuser: Opal polycarbonate
End caps: ABS plastic
Mounting: Surface brackets with horizontal adjustment
Options
Suspended version
IP65 version
Other lumen outputs available
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | BEAM | STANDARD | DALI |
|---|---|---|---|---|---|---|
| 18W | 3000K | 2042lm | Ø70 x 868 | 120° | 60102501 | 60102503 |
| 18W | 4000K | 2136lm | Ø70 x 868 | 120° | 60102601 | 60102603 |
| 24W | 3000K | 2718lm | Ø70 x 1149 | 120° | 60102901 | 60102903 |
| 24W | 4000K | 2843lm | Ø70 x 1149 | 120° | 60103001 | 60103003 |
| 30W | 3000K | 3401lm | Ø70 x 1430 | 120° | 60103301 | 60103303 |
| 30W | 4000K | 3558lm | Ø70 x 1430 | 120° | 60103401 | 60103403 |
| 47W | 3000K | 5435lm | Ø70 x 2273 | 120° | 60103701 | 60103703 |
| 47W | 4000K | 5687lm | Ø70 x 2273 | 120° | 60103801 | 60103803 |
| 59W | 3000K | 6802lm | Ø70 x 2835 | 120° | 60104101 | 60104103 |
| 59W | 4000K | 7116lm | Ø70 x 2835 | 120° | 60104201 | 60104203 |
