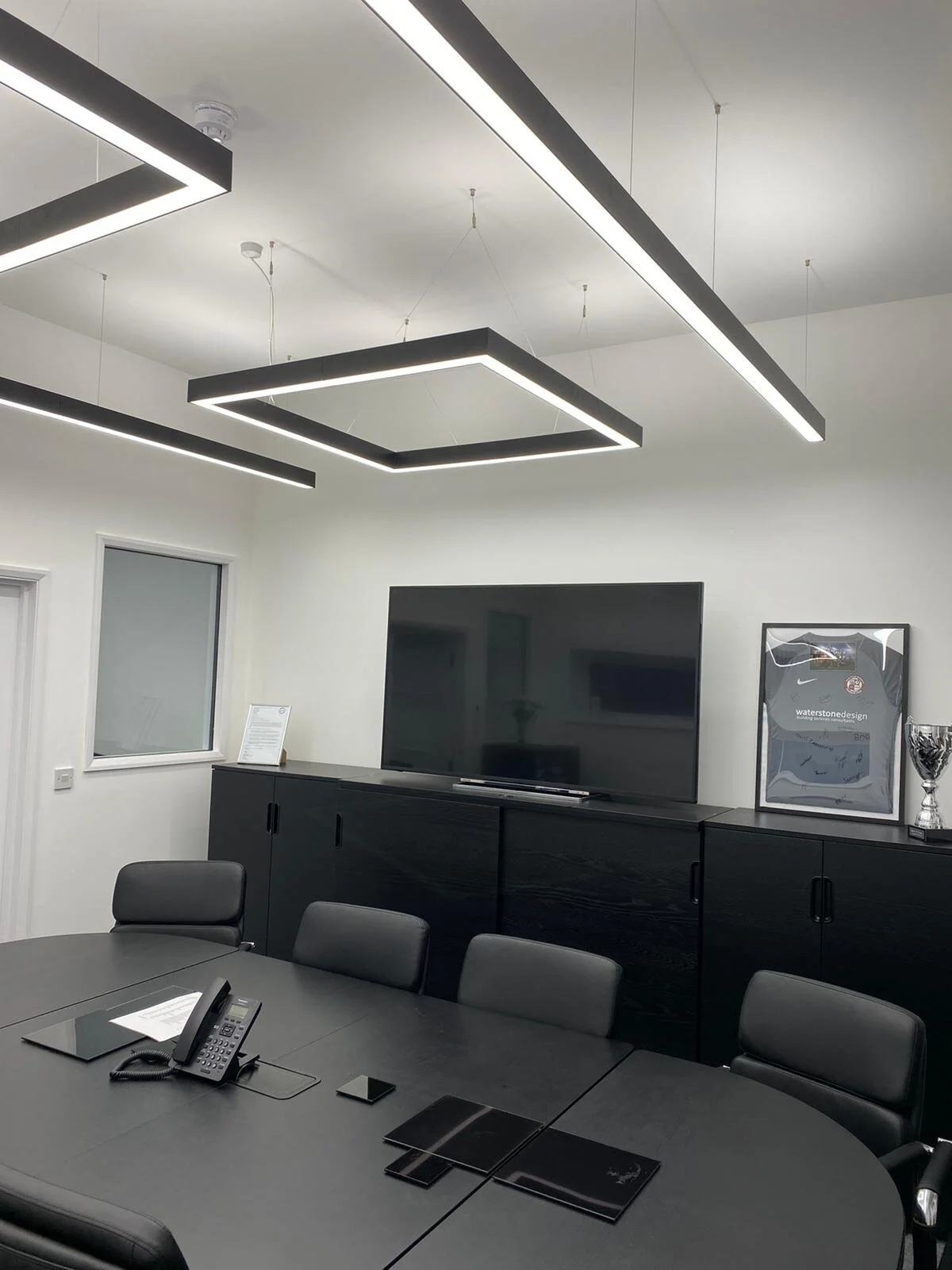

Golf 57 Square LED
A decorative, square aluminium profile LED pendant that complements the linear Golf 57 LED luminaire range.
Available in multiple outputs and finishes for maximum design flexibility.
Features
– Direct or direct/indirect illumination
– Average 54,000hr LED life (L90/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP20 | LED | CLASS I | CE
A decorative, square aluminium profile LED pendant that complements the linear Golf 57 LED luminaire range.
Available in multiple outputs and finishes for maximum design flexibility.
Features
– Direct or direct/indirect illumination
– Average 54,000hr LED life (L90/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP20 | LED | CLASS I | CE
A decorative, square aluminium profile LED pendant that complements the linear Golf 57 LED luminaire range.
Available in multiple outputs and finishes for maximum design flexibility.
Features
– Direct or direct/indirect illumination
– Average 54,000hr LED life (L90/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
IP20 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Distribution: Direct/ Direct-Indirect
Luminaire output: 5600-9520lm (DIR) / 6625-11200lm (DI-IN)
CRI: 80
Material
Body: Extruded aluminium profile
Finish: Grey/ White/ Black
Diffuser: Opal polycarbonate
Mounting: Surface / Suspension
Options
3hr maintained emergency
Other sizes available: 1352 x 1352mm / 1752 x 1752mm
Surface or suspension mounting
| Product Codes |
|---|
DIRECT
| LAMP | COLOUR TEMP | DELIVERED LUMENS | STANDARD GREY | STANDARD WHITE | STANDARD BLACK | DALI GREY | DALI WHITE | DALI BLACK |
|---|---|---|---|---|---|---|---|---|
| 56W | 3000K | 5600lm | 64400101 | 64400201 | 64400301 | 64400103 | 64400203 | 64400303 |
| 56W | 4000K | 5712lm | 64400401 | 64400501 | 64400601 | 64400403 | 64400503 | 64400603 |
| 72W | 3000K | 6980lm | 64400701 | 64400801 | 64400901 | 64400703 | 64400803 | 64400903 |
| 72W | 4000K | 7140lm | 64401001 | 64401101 | 64401201 | 64401003 | 64401103 | 64401203 |
| 88W | 3000K | 8192lm | 64401301 | 64401401 | 64401501 | 64401303 | 64401403 | 64401503 |
| 88W | 4000K | 8376lm | 64401601 | 64401701 | 64401801 | 64401603 | 64401703 | 64401803 |
| 100W | 3000K | 9320lm | 64401901 | 64402001 | 64402101 | 64401903 | 64402003 | 64402103 |
| 100W | 4000K | 9520lm | 64402201 | 64402301 | 64402401 | 64402203 | 64402303 | 64402403 |
DIRECT & INDIRECT
| LAMP | COLOUR TEMP | DELIVERED LUMENS | STANDARD GREY | STANDARD WHITE | STANDARD BLACK | DALI GREY | DALI WHITE | DALI BLACK |
|---|---|---|---|---|---|---|---|---|
| 64W | 3000K | 6500lm | 64407301 | 64407401 | 64407501 | 64407303 | 64407403 | 64407503 |
| 64W | 4000K | 6720lm | 64407601 | 64407701 | 64407801 | 64407603 | 64407703 | 64407803 |
| 84W | 3000K | 8240lm | 64407901 | 64408001 | 64408101 | 64407903 | 64408003 | 64408103 |
| 84W | 4000K | 8400lm | 64408201 | 64408301 | 64408401 | 64408203 | 64408303 | 64408403 |
| 100W | 3000K | 9616lm | 64408501 | 64408601 | 64408701 | 64408503 | 64408603 | 64408703 |
| 100W | 4000K | 9856lm | 64408801 | 64408901 | 64409001 | 64408803 | 64408903 | 64409003 |
| 116W | 3000K | 11040lm | 64409101 | 64409201 | 64409301 | 64409103 | 64409203 | 64409303 |
| 116W | 4000K | 11200lm | 64409401 | 64409501 | 64409601 | 64409403 | 64409503 | 64409603 |
