Genesis LED

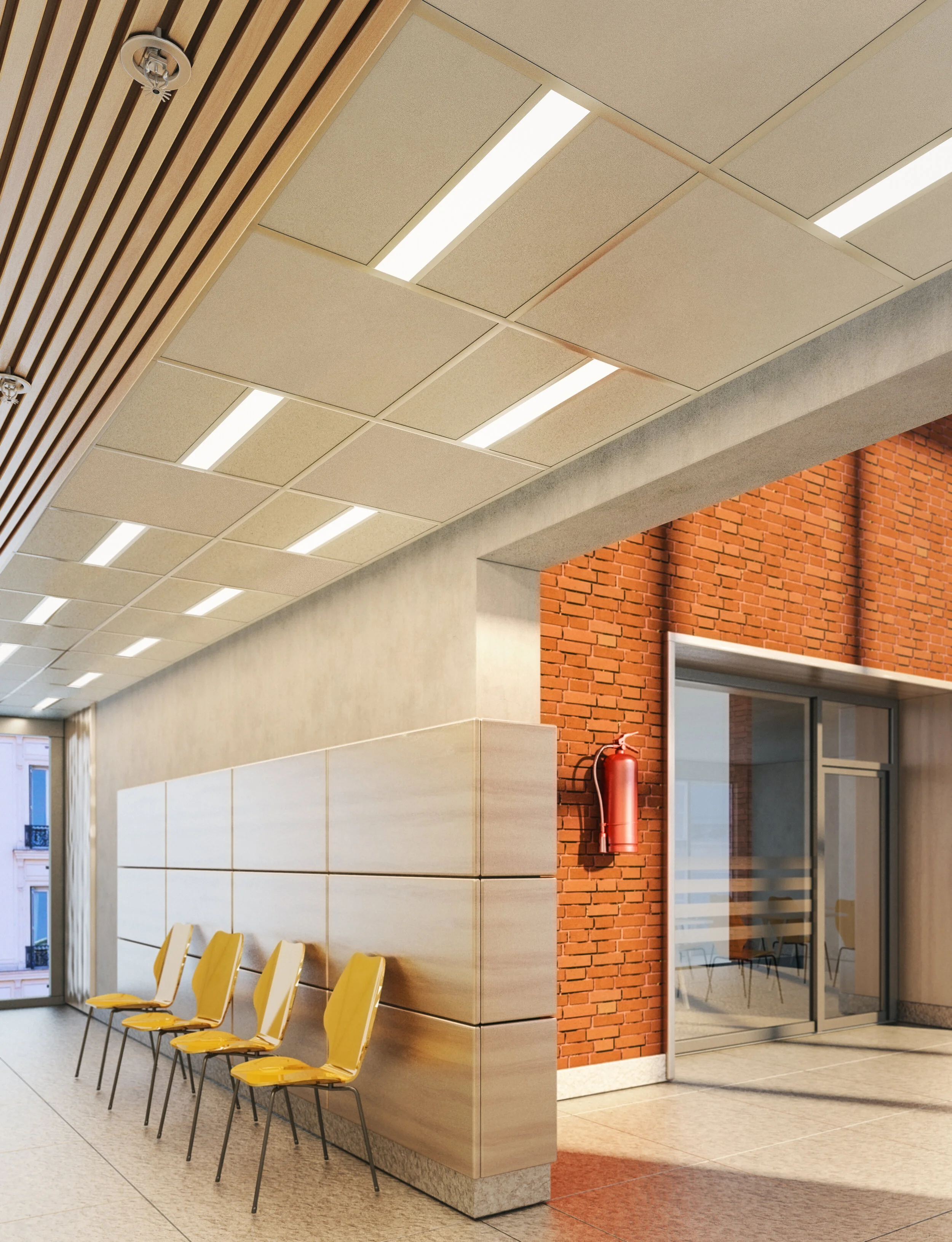

A unique slim, back lit LED panel with a high photometric performance and uniform illuminance to fit a lay-in modular or plasterboard ceiling.
Features
– High lumen efficiency
– Average rated LED life: 60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Suitable for recessed mounting in modular ceiling
– Photobiological hazard: RG0
IP20 | LED | CLASS I | CE
A unique slim, back lit LED panel with a high photometric performance and uniform illuminance to fit a lay-in modular or plasterboard ceiling.
Features
– High lumen efficiency
– Average rated LED life: 60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Suitable for recessed mounting in modular ceiling
– Photobiological hazard: RG0
IP20 | LED | CLASS I | CE
A unique slim, back lit LED panel with a high photometric performance and uniform illuminance to fit a lay-in modular or plasterboard ceiling.
Features
– High lumen efficiency
– Average rated LED life: 60,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Suitable for recessed mounting in modular ceiling
– Photobiological hazard: RG0
IP20 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
LED output: 2600 – 4400lm
Luminaire output: 1911 – 3545lm
Luminaire efficiency: 100lm/W
CRI: 80
Material
Body: Sheet steel
Finish: Powder painted white
Diffuser: Opal PMMA
Mounting: Recessed Modular
Options
2 step MacAdam, CRI:90
Plasterboard ceiling mounting
Higher outputs available
Microprismatic diffuser
Internal fuse and LS0H cable
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI |
|---|---|---|---|---|---|---|
| 19W | 3000K | 1911lm | 11200501 | 11200503 | 11200591 | 11200593 |
| 18W | 4000K | 2094lm | 11200601 | 11200603 | 11200691 | 11200693 |
| 33W | 3000K | 3312lm | 11200701 | 11200703 | 11200791 | 11200793 |
| 32W | 4000K | 3545lm | 11200801 | 11200803 | 11200891 | 11200893 |
