Galaxy LED
A modern, linear LED luminaire with strong, sturdy lines that command attention. Suitable for a wide range of environments including offices, corridors and public spaces.
Features
– High luminaire efficiency
– Surface or suspension mounting
– Average rated LED life: >54,000hrs (L90/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP20 | LED | CLASS I | CE
A modern, linear LED luminaire with strong, sturdy lines that command attention. Suitable for a wide range of environments including offices, corridors and public spaces.
Features
– High luminaire efficiency
– Surface or suspension mounting
– Average rated LED life: >54,000hrs (L90/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP20 | LED | CLASS I | CE
A modern, linear LED luminaire with strong, sturdy lines that command attention. Suitable for a wide range of environments including offices, corridors and public spaces.
Features
– High luminaire efficiency
– Surface or suspension mounting
– Average rated LED life: >54,000hrs (L90/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP20 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Emission: Direct
Luminaire output: 3040 – 5180lm (Opal)/ 3410 – 6980lm (Louvre)
CRI: >80
UGR: <19 (Louvre)
Material
Body: Sheet steel
Finish: White
Diffuser: Opal PMMA
Louvre: Polished anodised aluminium
End caps: Reinforced polycarbonate
Mounting: Surface / Suspension
Options
3hr emergency
Suspension kit (“Y” type)
Other RAL finishes
Asymmetrical version
Internal fuse and LS0H cables
| Product Codes |
|---|

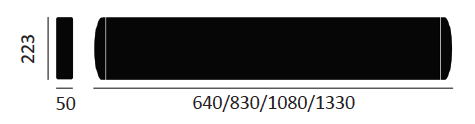

| LAMP | COLOUR TEMP | DELIVERED LUMENS | TYPE | DIMENSIONS | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI |
|---|---|---|---|---|---|---|---|---|
| 27W | 3000K | 3040lm | Opal | 830 x 223 | 60702501 | 60702503 | 60702591 | 60702593 |
| 27W | 4000K | 3100lm | Opal | 830 x 223 | 60702601 | 60702603 | 60702691 | 60702693 |
| 35W | 3000K | 4060lm | Opal | 1080 x 223 | 60702701 | 60702703 | 60702791 | 60702793 |
| 35W | 4000K | 4140lm | Opal | 1080 x 223 | 60702801 | 60702803 | 60702891 | 60702893 |
| 42W | 3000K | 5080lm | Opal | 1330 x 223 | 60702901 | 60702903 | 60702991 | 60702993 |
| 42W | 4000K | 5180lm | Opal | 1330 x 223 | 60703001 | 60703003 | 60703091 | 60703093 |
| 27W | 3000K | 3410lm | Louvre | 640 x 223 | 60703101 | 60703103 | 60703191 | 60703193 |
| 27W | 4000K | 3490lm | Louvre | 640 x 223 | 60703201 | 60703203 | 60703291 | 60703293 |
| 51W | 3000K | 6830lm | Louvre | 1180 x 223 | 60703301 | 60703303 | 60703391 | 60703393 |
| 51W | 4000K | 6980lm | Louvre | 1180 x 223 | 60703401 | 60703403 | 60703491 | 60703493 |
