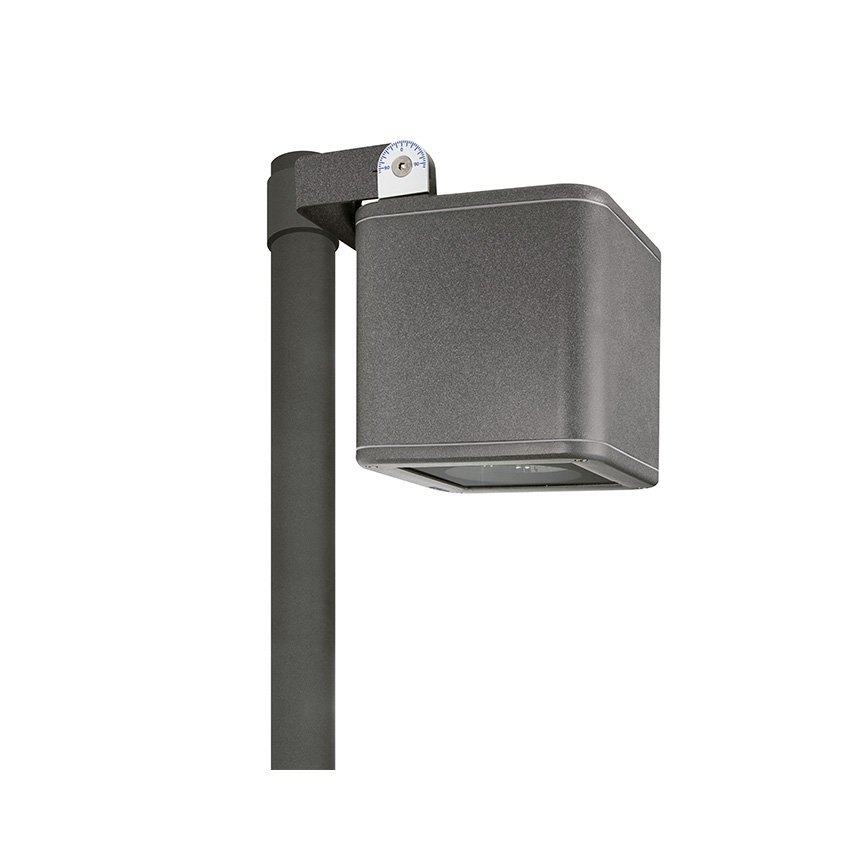

Festiva LED
A series of box-shaped spotlights to be mounted on the floor, wall, spike, tree with a belt or on a pole system. Rotatable and inclinable on the vertical axis, these luminaires are designed to illuminate small, medium and tall architectural features thanks to a wide range of optics and wattages.
Features
– High resistance to UV and oxidation
– Average rated LED life: >100,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance

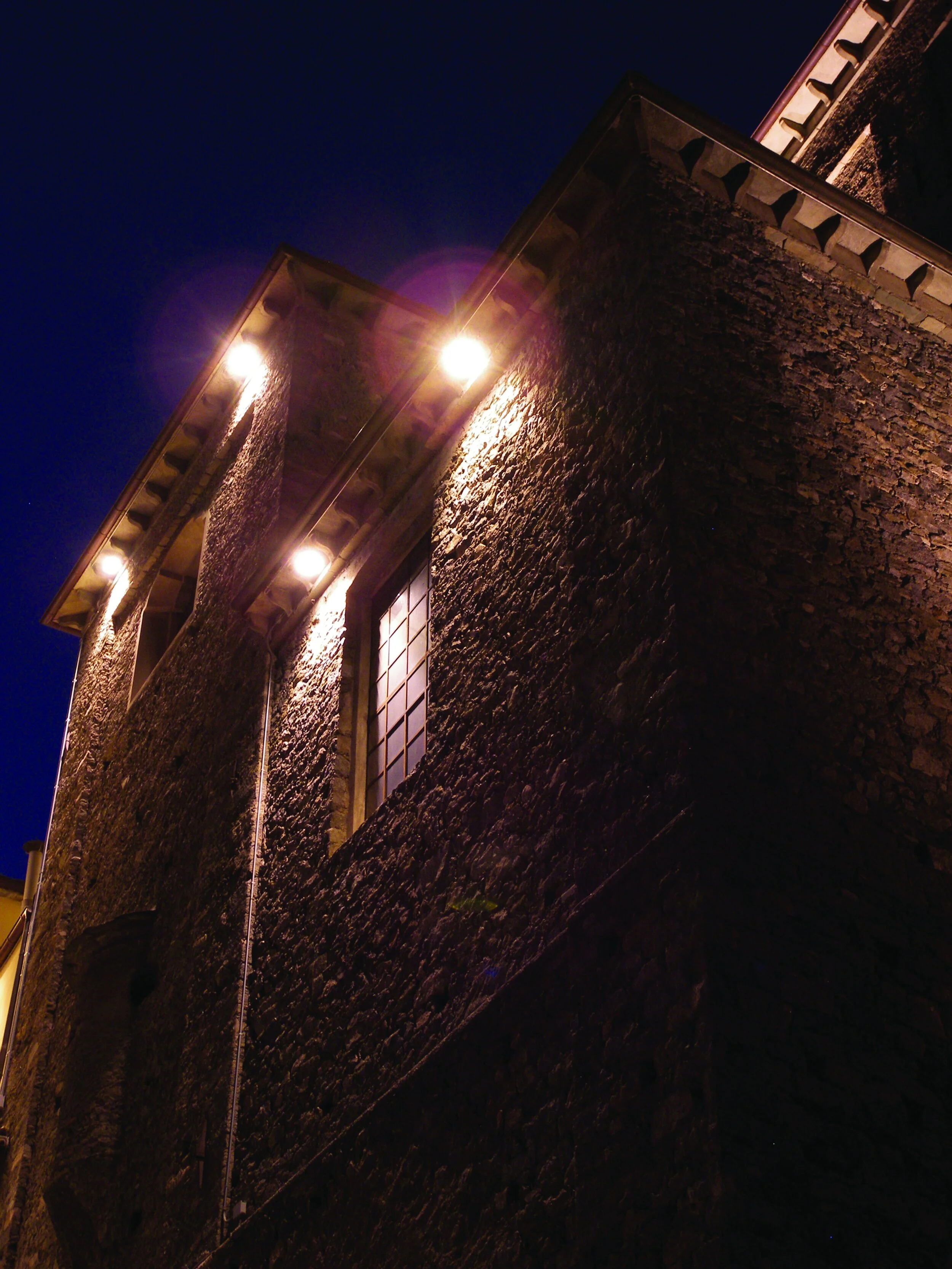

– Light can be directed up or down making it ideal for lighting facades in small environments
IP65 | IK06 | LED | CLASS I | CE
A series of box-shaped spotlights to be mounted on the floor, wall, spike, tree with a belt or on a pole system. Rotatable and inclinable on the vertical axis, these luminaires are designed to illuminate small, medium and tall architectural features thanks to a wide range of optics and wattages.
Features
– High resistance to UV and oxidation
– Average rated LED life: >100,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Light can be directed up or down making it ideal for lighting facades in small environments
IP65 | IK06 | LED | CLASS I | CE
A series of box-shaped spotlights to be mounted on the floor, wall, spike, tree with a belt or on a pole system. Rotatable and inclinable on the vertical axis, these luminaires are designed to illuminate small, medium and tall architectural features thanks to a wide range of optics and wattages.
Features
– High resistance to UV and oxidation
– Average rated LED life: >100,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Light can be directed up or down making it ideal for lighting facades in small environments
IP65 | IK06 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Distribution: Symmetric
LED output: 1045 – 6290lm
Luminaire output: 685 – 4171lm
CRI: >90
Beam angle: 26° (7W)/ 30° (32W)/ 35° (16W/29W)/ 62°(47W)
Material
Body: Extruded aluminium EN-AB 44100
Finish: Anthracite grey/ Light grey
Diffuser: 4mm soda lime tempered clear glass
External fixings: Stainless steel
Mounting: Surface, U-bracket
Options
DALI
Coloured films
Spike, vandal-proof grid and anti-glare louvre available
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | BEAM | ANTHRACITE GREY | LIGHT GREY |
|---|---|---|---|---|---|---|
| 7W | 3000K | 685lm | 90 x 90 x 143 | 26° | 72400101 | 72400201 |
| 7W | 4000K | 708lm | 90 x 90 x 143 | 26° | 72400301 | 72400401 |
| 16W | 3000K | 1581lm | 125 x 125 x 195 | 35° | 72400901 | 72401001 |
| 16W | 4000K | 1630lm | 125 x 125 x 195 | 35° | 72401101 | 72401201 |
| 29W | 3000K | 2877lm | 125 x 125 x 195 | 35° | 72401701 | 72401801 |
| 29W | 4000K | 2966lm | 125 x 125 x 195 | 35° | 72401901 | 72402001 |
| 32W | 3000K | 3533lm | 200 x 200 x 322 | 30° | 72402101 | 72402201 |
| 32W | 4000K | 3640lm | 200 x 200 x 322 | 30° | 72402301 | 72402401 |
| 47W | 3000K | 4045lm | 200 x 200 x 322 | 62° | 72402501 | 72402601 |
| 47W | 4000K | 4171lm | 200 x 200 x 322 | 62° | 72402701 | 72402801 |
