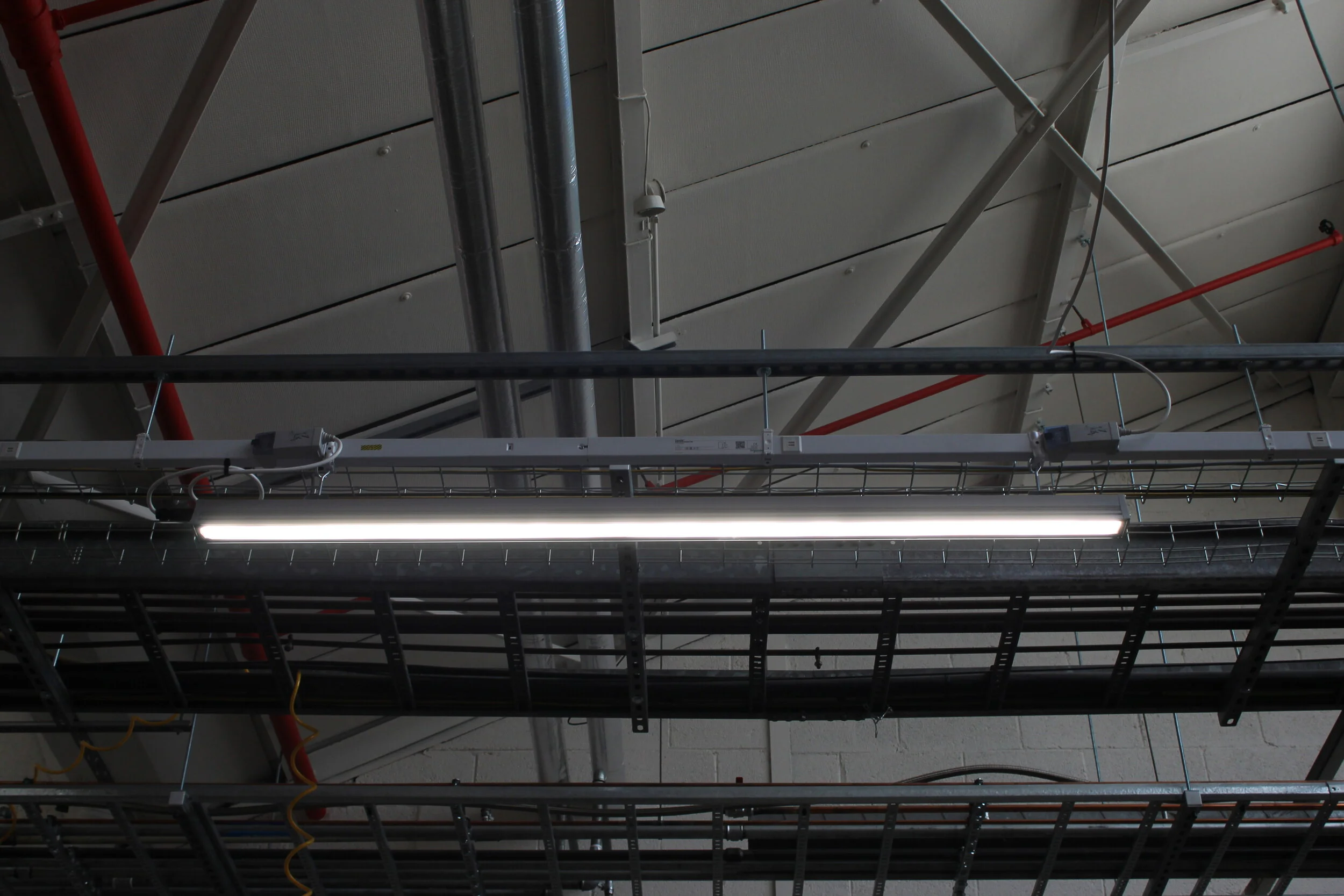

Product image of the hermetic IP66 linear Escalade LED luminaire
Product image of the hermetic IP66 linear Escalade LED luminaire

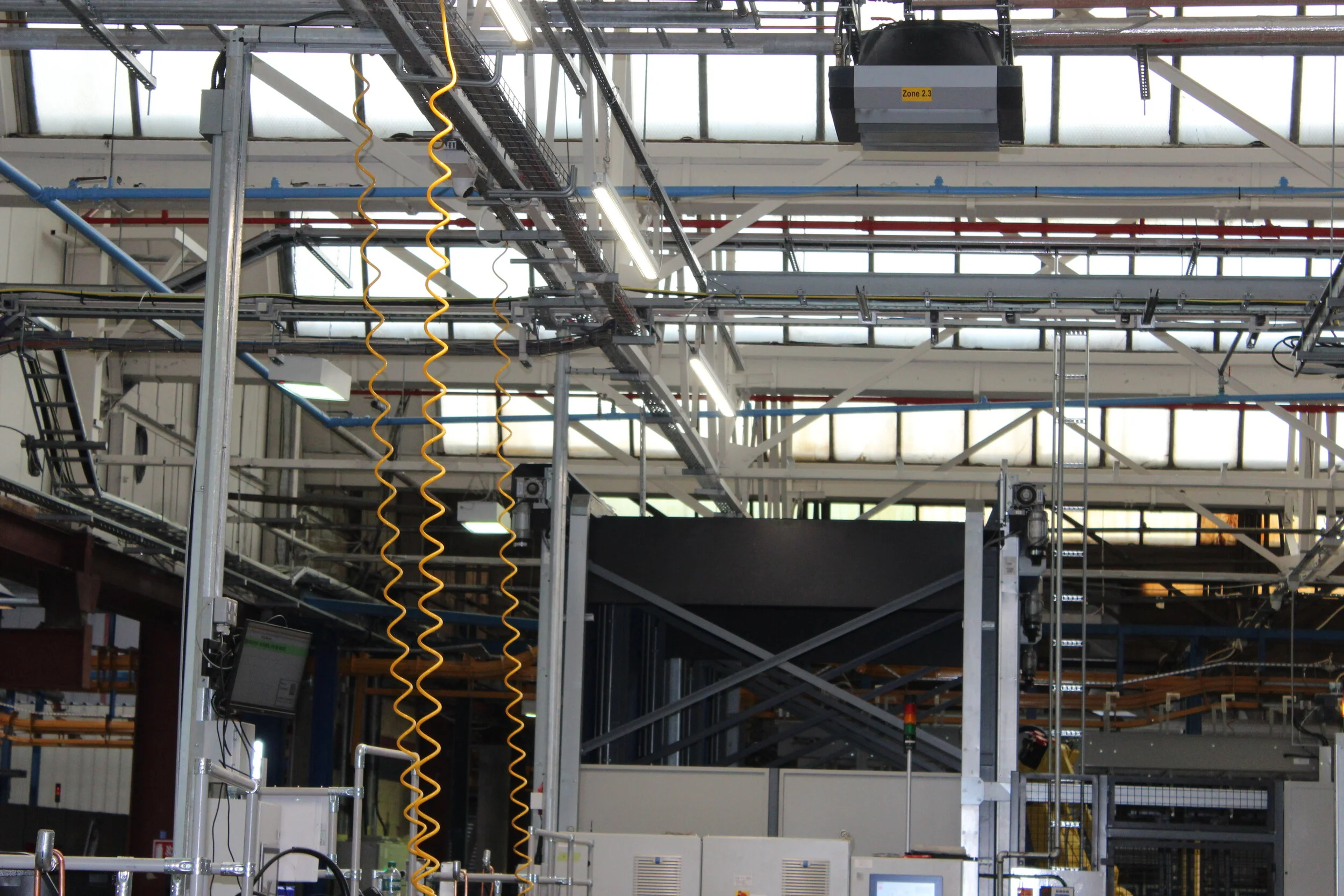

Product image of the hermetic IP66 linear Escalade LED luminaire

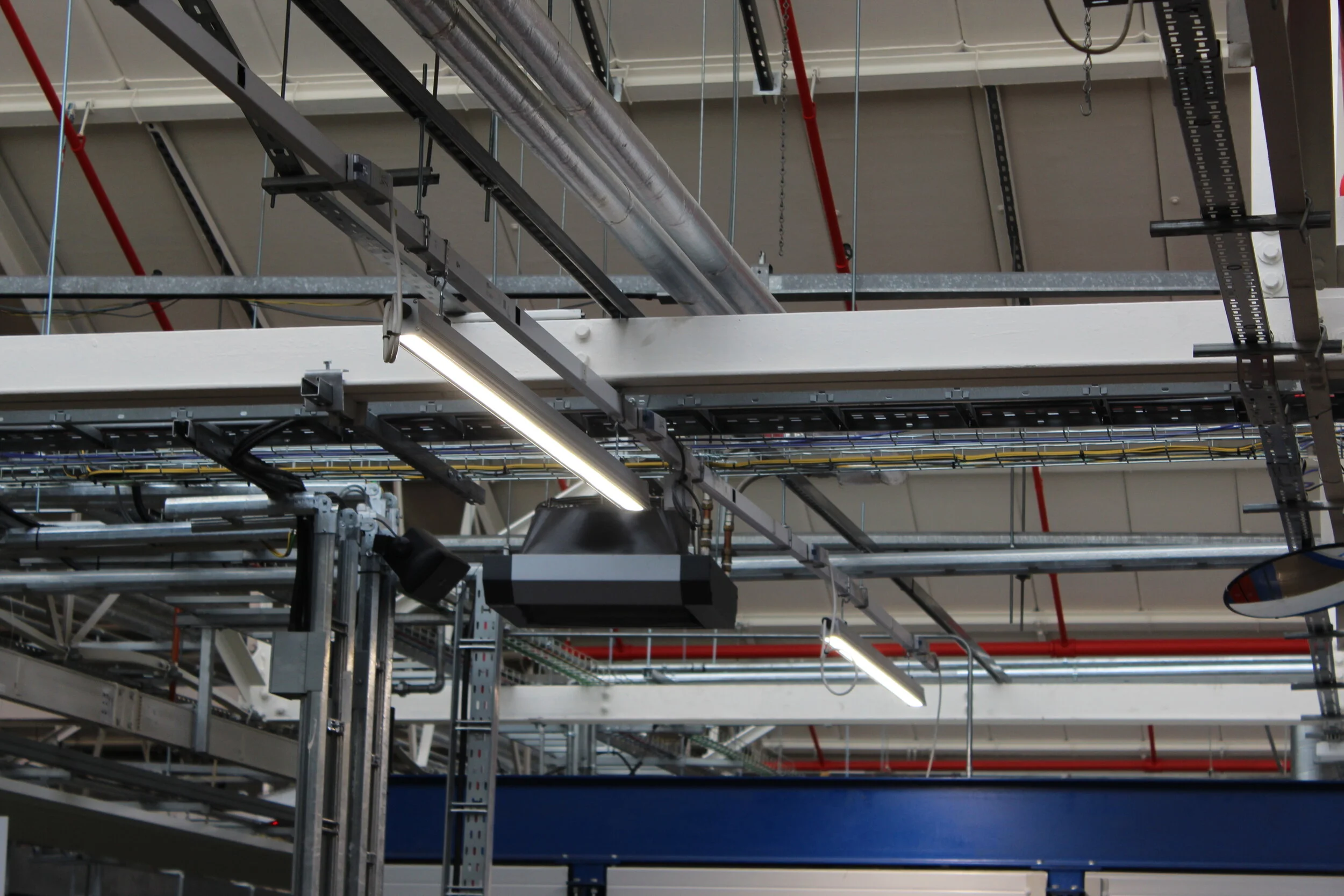

Product image of the hermetic IP66 linear Escalade LED luminaire

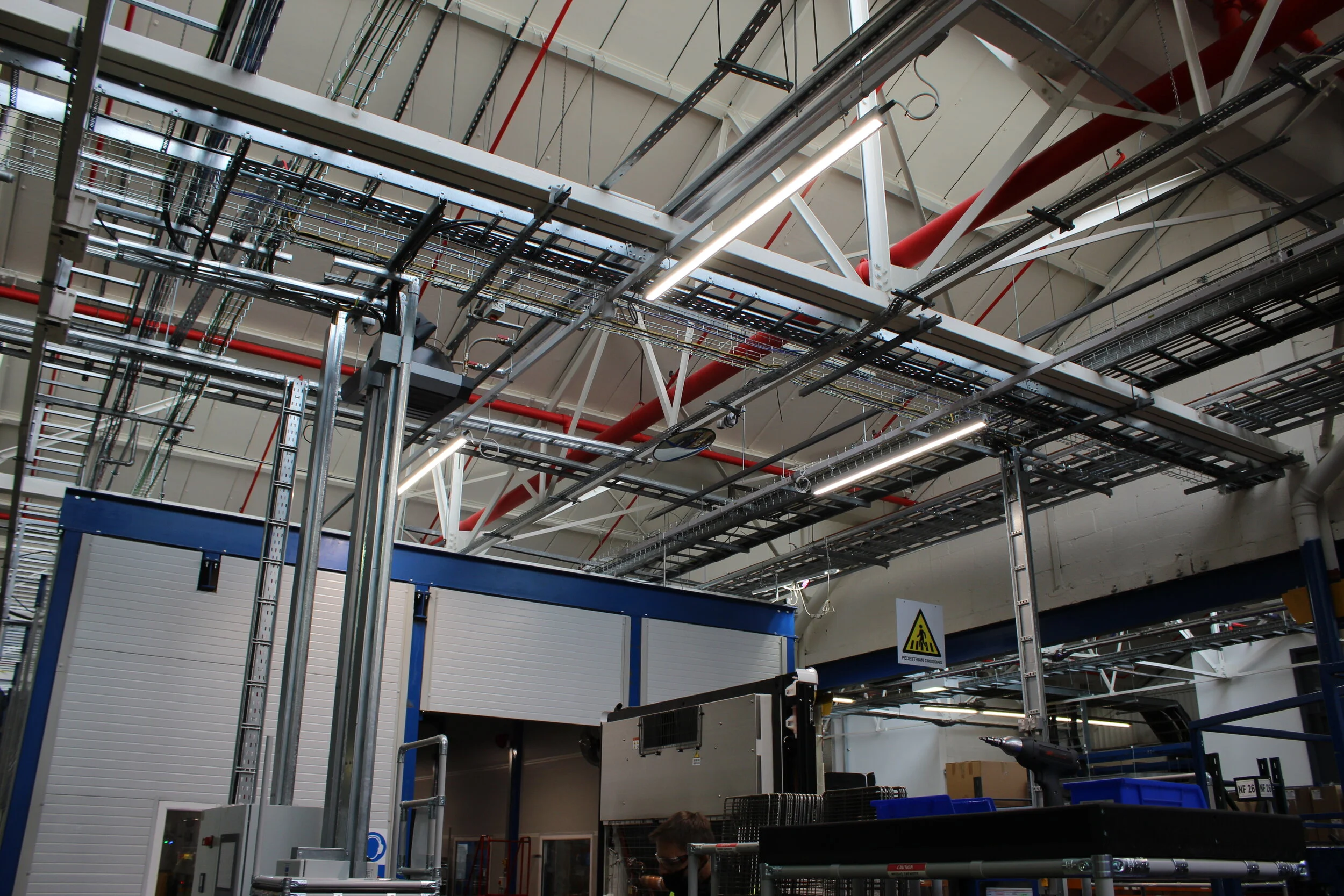

Product image of the hermetic IP66 linear Escalade LED luminaire

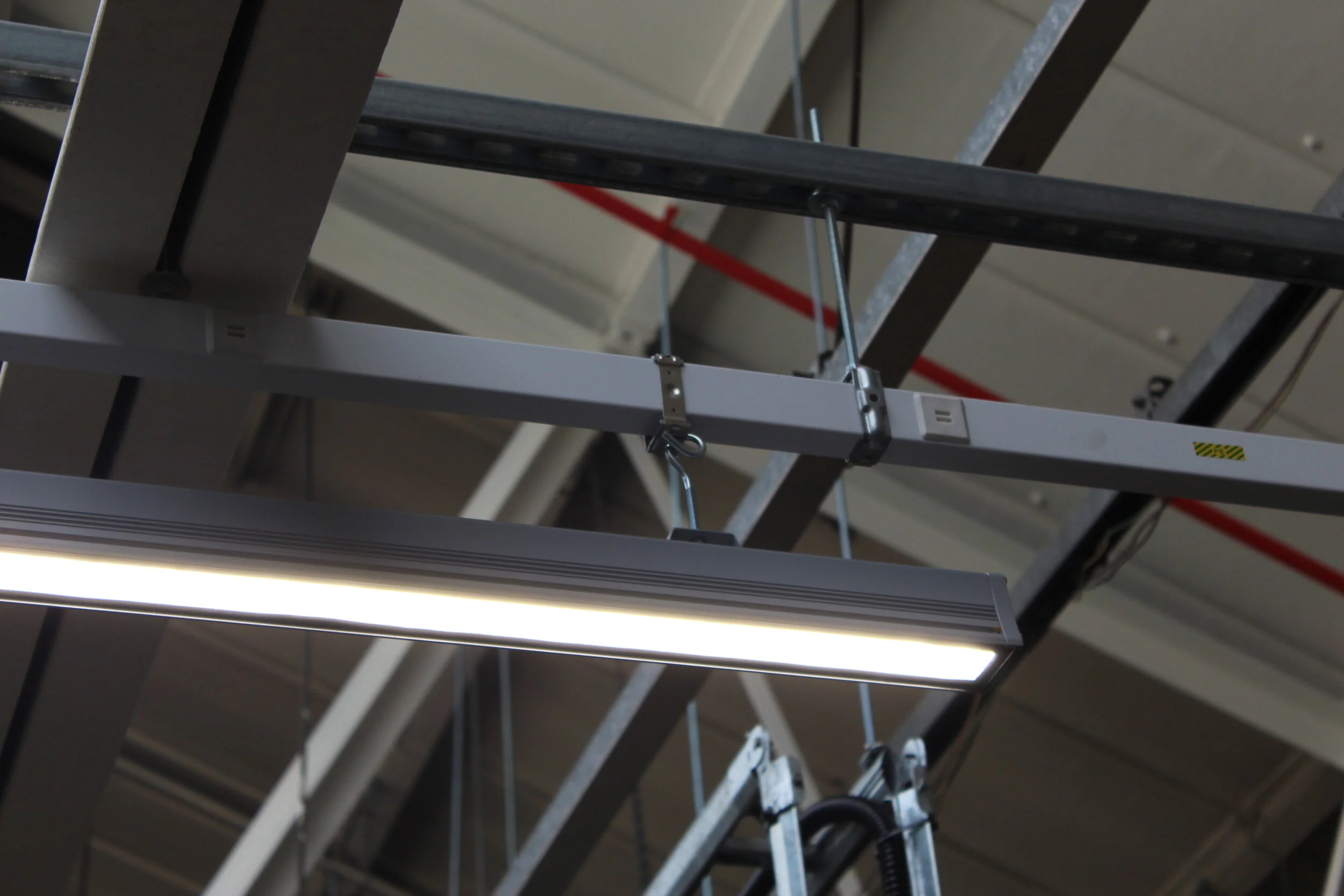

Product image of the hermetic IP66 linear Escalade LED luminaire

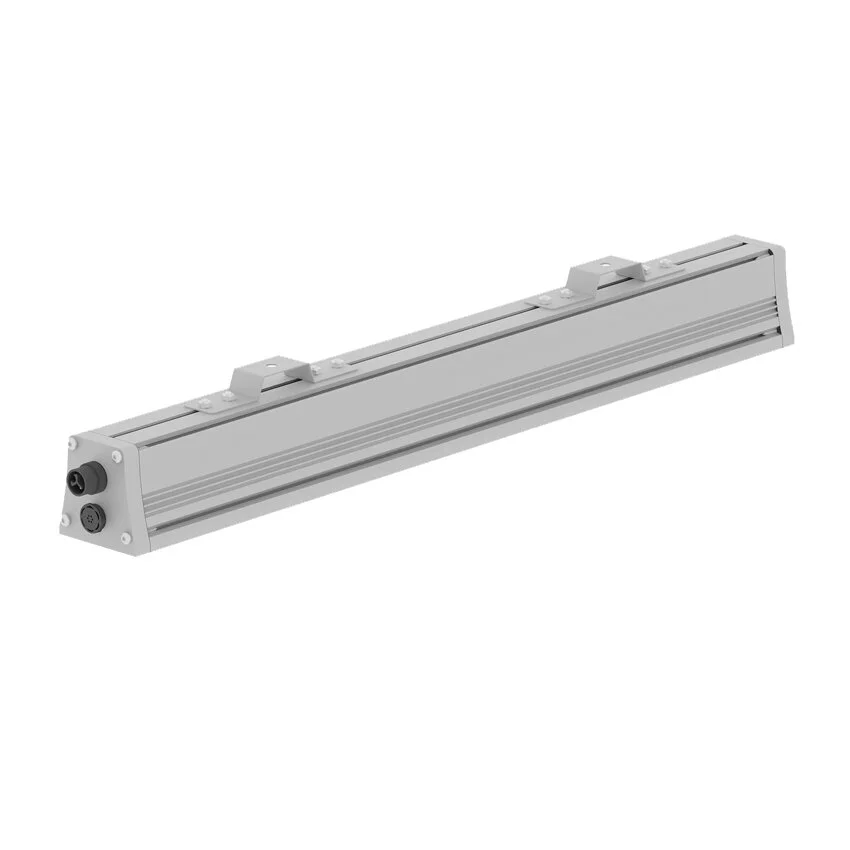

Product image of the hermetic IP66 linear Escalade LED luminaire
Product image of the hermetic IP66 linear Escalade LED luminaire

Escalade LED

$0.00

A modern, general purpose, hermetic IP66 LED luminaire, providing direct illumination that can be suspended or surface mounted for maximum flexibility. Ideal for lighting aisles, storage areas, warehouses and other industrial spaces.

Features

– Easy to installation - Smooth adjustment of fastener spacing.
– Wieland RST outlet - through-wiring on request.
– Long rated LED life: >72,000hrs (L80/B10)
– Optimum colour consistency—3 step MacAdam ellipse tolerance
– Uniform illumination

IP66 | IK10 | LED | CLASS I | CE

A modern, general purpose, hermetic IP66 LED luminaire, providing direct illumination that can be suspended or surface mounted for maximum flexibility. Ideal for lighting aisles, storage areas, warehouses and other industrial spaces.

Features

– Easy to installation - Smooth adjustment of fastener spacing.
– Wieland RST outlet - through-wiring on request.
– Long rated LED life: >72,000hrs (L80/B10)
– Optimum colour consistency—3 step MacAdam ellipse tolerance
– Uniform illumination

IP66 | IK10 | LED | CLASS I | CE

Technical Information

Performance

Light source: LED
Distribution: Symmetric
LED output: 7200 – 21600lm
Luminaire output: 5350 – 19650lm
CRI: 84
Beam angle: 45°/ 65°/100°

Material

Body: Aluminium
Finish: Grey
Diffuser: Clear tempered glass (45°/65°)
Frosted tempered glass (100°)
Mounting: Surface/ Suspension

Options

Other RAL finishes
Brackets for wall mounting

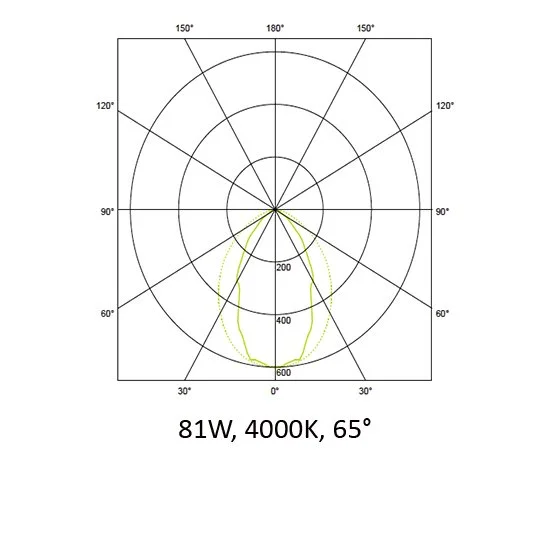

Escalade LED polar curve image
Escalade LED.jpg
Product Codes
LAMPCOLOUR
TEMP		DELIVERED
LUMENS		BEAMLENGTHSURFACE
STANDARD		SURFACE
DALI		SUSPENDED
STANDARD		SUSPENDED
DALI
42W4000K6510lm45°600mm25600101256001032560020125600203
42W4000K6340lm65°600mm25600301256003032560040125600403
42W4000K5350lm100°600mm25600501256005032560060125600603
40W4000K6440lm45°1160mm25600701256007032560080125600803
40W4000K6280lm65°1160mm25600901256009032560100125601003
40W4000K5280lm100°1160mm25601101256011032560120125601203
81W4000K13030lm45°1160mm25601301256013032560140125601403
81W4000K12680lm65°1160mm25601501256015032560160125601603
81W4000K10710lm100°1160mm25601701256017032560180125601803
60W4000K9660lm45°1720lm25601901256019032560200125602003
60W4000K9420lm65°1720lm25602101256021032560220125602203
60W4000K7980lm100°1720lm25602301256023032560240125602403
121W4000K19540lm45°1720lm25602501256025032560260125602603
121W4000K19020lm65°1720lm25602701256027032560280125602803
121W4000K16060lm100°1720lm25602901256029032560300125603003

Downloads
Datasheet
LDT Files
