Elite Line LED

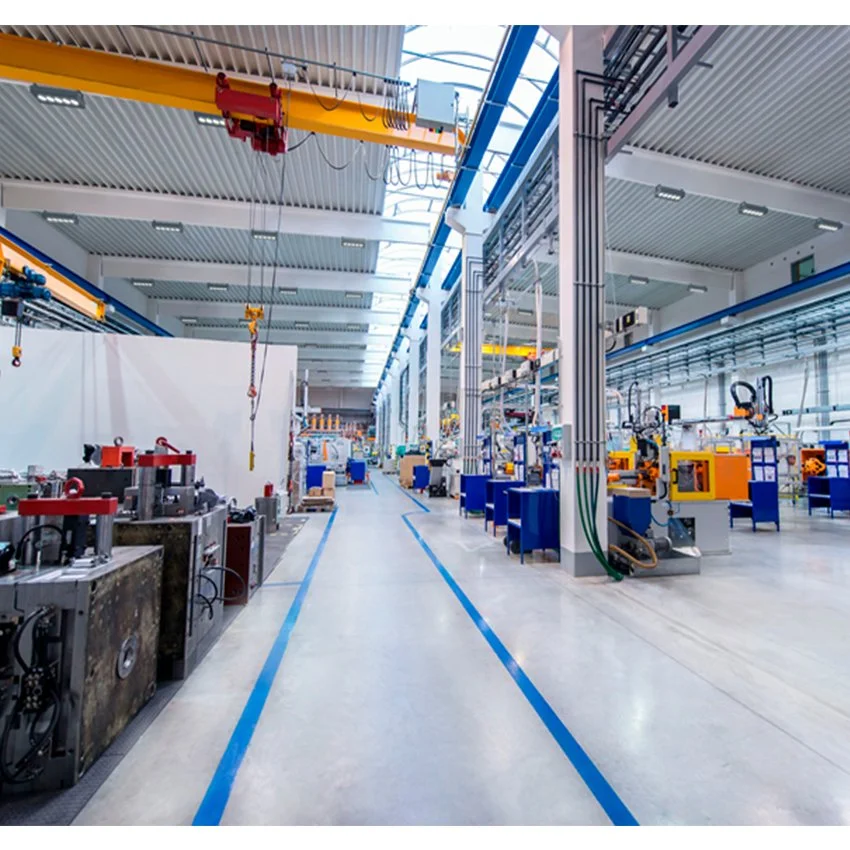

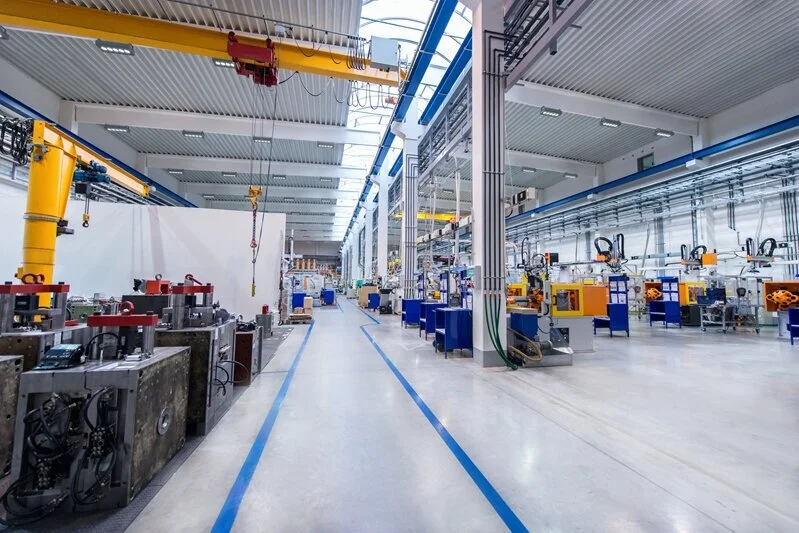

A high performance, energy efficient LED linear industrial high bay luminaire, which is ideally suited to warehouses, halls, production areas and other similar environments.
Features
– High powered LED light source
– Design flexibility – various lumen outputs
– Average rated LED life: >83,000hrs (L90/B10)
– Optimum colour consistency – 2 step MacAdam ellipse tolerance
IP65 | IK08 | LED | CLASS I | CE
A high performance, energy efficient LED linear industrial high bay luminaire, which is ideally suited to warehouses, halls, production areas and other similar environments.
Features
– High powered LED light source
– Design flexibility – various lumen outputs
– Average rated LED life: >83,000hrs (L90/B10)
– Optimum colour consistency – 2 step MacAdam ellipse tolerance
IP65 | IK08 | LED | CLASS I | CE
A high performance, energy efficient LED linear industrial high bay luminaire, which is ideally suited to warehouses, halls, production areas and other similar environments.
Features
– High powered LED light source
– Design flexibility – various lumen outputs
– Average rated LED life: >83,000hrs (L90/B10)
– Optimum colour consistency – 2 step MacAdam ellipse tolerance
IP65 | IK08 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Distribution: Direct
LED output: 17160 – 32320lm
Luminaire output: 12144 – 29831lm
Luminaire efficiency: ≥98lm/W
CRI: >80
Beam angle: Narrow/ Medium/ Wide
Material
Body: Aluminium
Finish: Black
Diffuser: Tempered glass
Mounting: Surface/ Suspended
Options
Suspension kit
Reduced and higher outputs
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | BEAM | DIMENSIONS | STANDARD | DALI |
|---|---|---|---|---|---|---|
| 125W | 4000K | 12144lm | Narrow | 449x185x160 | 61103001 | 61103003 |
| 125W | 4000K | 14246lm | Medium | 449x185x160 | 61103101 | 61103103 |
| 125W | 4000K | 14915lm | Wide | 449x185x160 | 61103201 | 61103203 |
| 166W | 4000K | 16192lm | Narrow | 449x185x160 | 61103301 | 61103303 |
| 166W | 4000K | 18995lm | Medium | 449x185x160 | 61103401 | 61103403 |
| 166W | 4000K | 19887lm | Wide | 449x185x160 | 61103501 | 61103503 |
| 208W | 4000K | 20240lm | Narrow | 599x185x160 | 61103601 | 61103603 |
| 208W | 4000K | 23744lm | Medium | 599x185x160 | 61103701 | 61103703 |
| 208W | 4000K | 24859lm | Wide | 599x185x160 | 61103801 | 61103803 |
| 249W | 4000K | 24288lm | Narrow | 751x185x160 | 61103901 | 61103903 |
| 249W | 4000K | 28492lm | Medium | 751x185x160 | 61104001 | 61104003 |
| 249W | 4000K | 29831lm | Wide | 751x185x160 | 61104101 | 61104103 |
