Delia LED
A flat, elegant, circular LED luminaire available in a high-quality polycarbonate or optional glass diffuser. Available in a diameter up to 900mm and in multiple outputs, the Delia is extremely versatile and would complement any interior design.
Features
– Modern design
– Long rated LED life: >67,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Available in various lumen outputs and sizes
– Complementary pendant luminaires
IP54 | IK10 | LED | CLASS I | CE
A flat, elegant, circular LED luminaire available in a high-quality polycarbonate or optional glass diffuser. Available in a diameter up to 900mm and in multiple outputs, the Delia is extremely versatile and would complement any interior design.
Features
– Modern design
– Long rated LED life: >67,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Available in various lumen outputs and sizes
– Complementary pendant luminaires
IP54 | IK10 | LED | CLASS I | CE
A flat, elegant, circular LED luminaire available in a high-quality polycarbonate or optional glass diffuser. Available in a diameter up to 900mm and in multiple outputs, the Delia is extremely versatile and would complement any interior design.
Features
– Modern design
– Long rated LED life: >67,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– Available in various lumen outputs and sizes
– Complementary pendant luminaires
IP54 | IK10 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
LED output: 2000 – 23170lm
Luminaire output: 1480 – 16220lm
Luminaire efficiency: ≥95lm/W
CRI: >80
Material
Body: Sheet steel
Finish: White
Diffuser: Opal polycarbonate (Ø300/400/500)
PMMA (Ø650/900)
Mounting: Surface
Options
Microwave sensor for enhanced energy savings
Replacement shade
Matching pendant
Bluetooth enabled
| Product Codes |
|---|

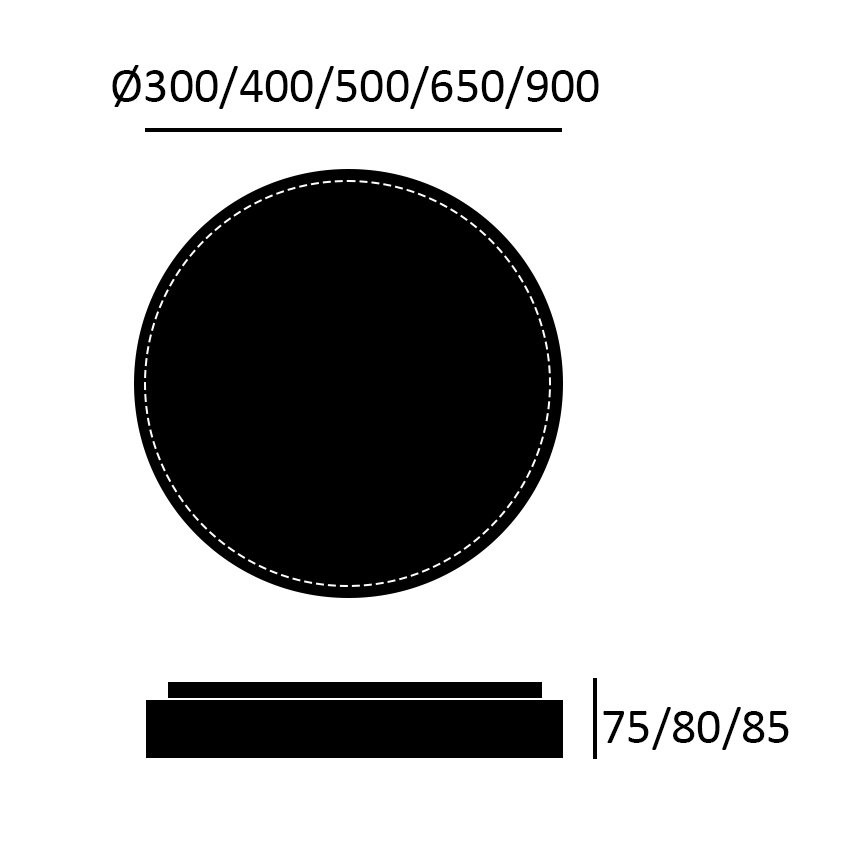

| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI |
|---|---|---|---|---|---|---|---|
| 15W | 3000K | 1480lm | Ø300 x 75 | 42100101 | 42100103 | 42100191 | 42100193 |
| 15W | 4000K | 1560lm | Ø300 x 75 | 42100201 | 42100203 | 42100291 | 42100293 |
| 20W | 3000K | 1920lm | Ø300 x 75 | 42100301 | 42100303 | 42100391 | 42100393 |
| 20W | 4000K | 2000lm | Ø300 x 75 | 42100401 | 42100403 | 42100491 | 42100493 |
| 28W | 3000K | 2580lm | Ø400 x 80 | 42100501 | 42100503 | 42100591 | 42100593 |
| 28W | 4000K | 2720lm | Ø400 x 80 | 42100601 | 42100603 | 42100691 | 42100693 |
| 36W | 3000K | 3400lm | Ø400 x 80 | 42100701 | 42100703 | 42100791 | 42100793 |
| 36W | 4000K | 3550lm | Ø400 x 80 | 42100801 | 42100803 | 42100891 | 42100893 |
| 35W | 3000K | 3140lm | Ø500 x 85 | 42100901 | 42100903 | 42100991 | 42100993 |
| 35W | 4000K | 3310lm | Ø500 x 85 | 42101001 | 42101003 | 42101091 | 42101093 |
| 53W | 3000K | 4470lm | Ø500 x 85 | 42101101 | 42101103 | 42101191 | 42101193 |
| 53W | 4000K | 4720lm | Ø500 x 85 | 42101201 | 42101203 | 42101291 | 42101293 |
