Decibel LED

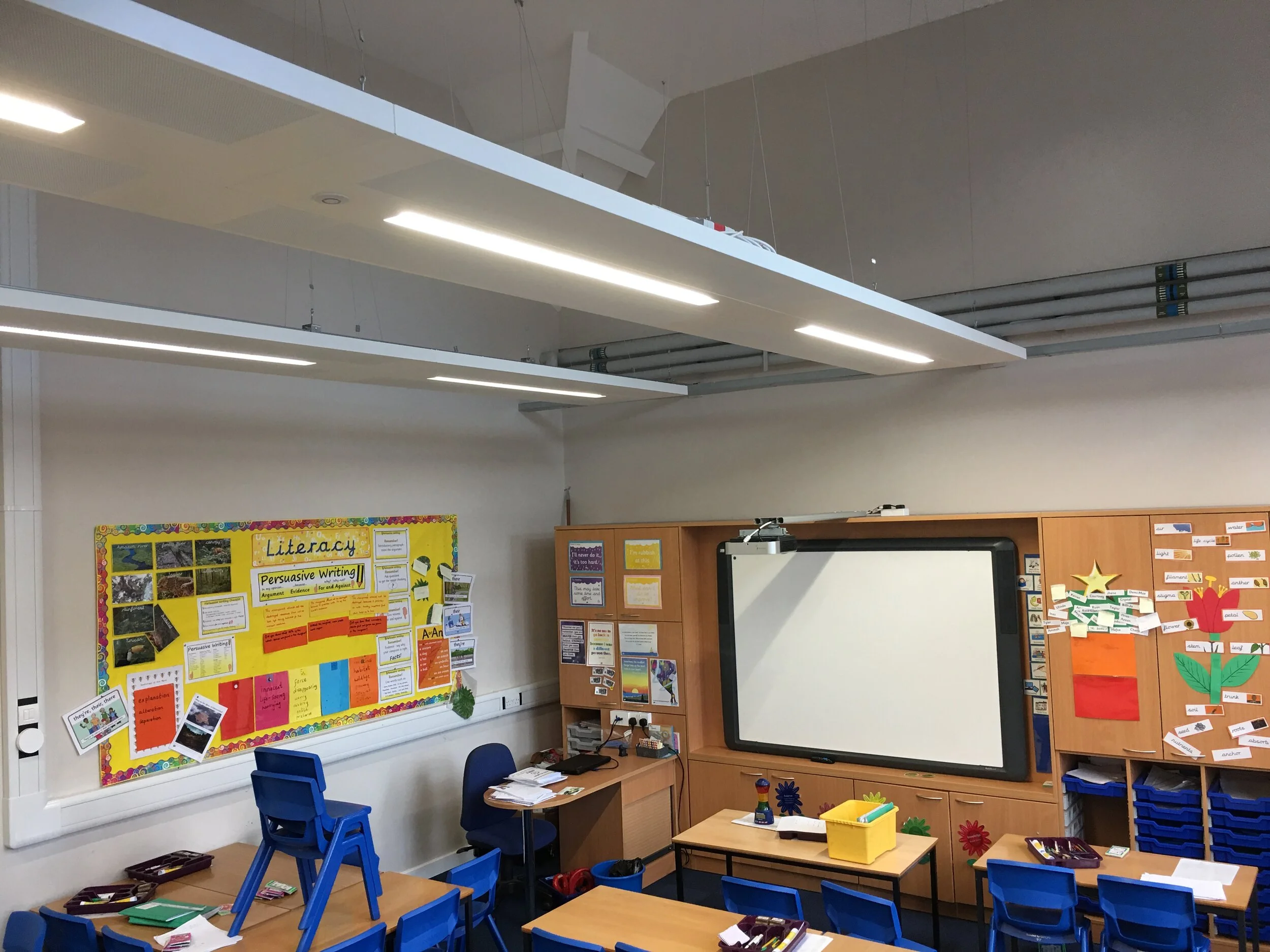

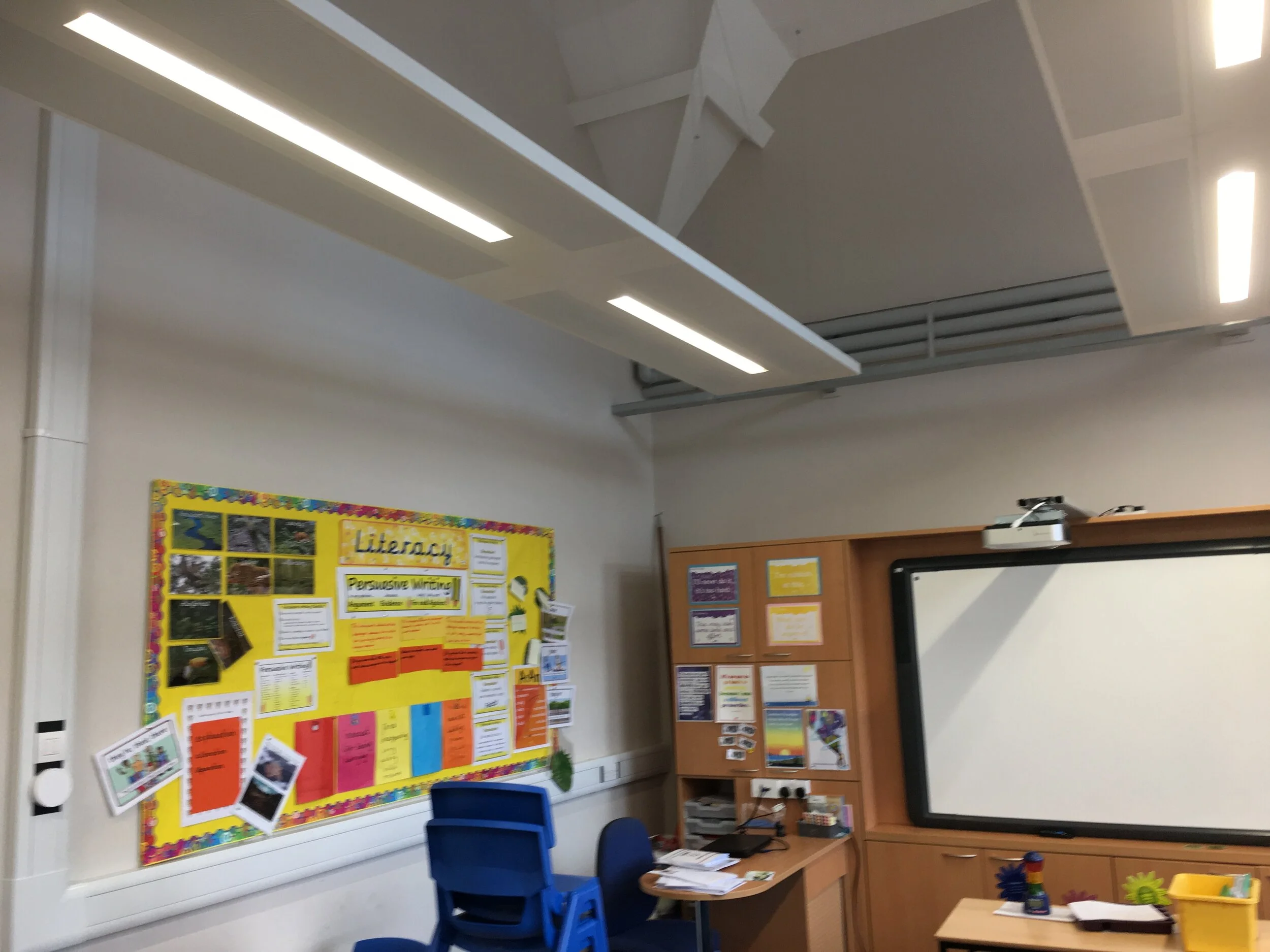

A high performance, linear LED luminaire installed with Class O acoustic absorption as standard. Ideal for all educational environments.
Features
– Individual or continuous mounting
– Average rated LED life: >50,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Excellent sound absorption coefficient (full acoustic report available)
– Tested to BS EN ISO 354:2003. Surpasses the recommendations of BB93 in a typical classroom
IP20 | LED | CLASS I | CE
A high performance, linear LED luminaire installed with Class O acoustic absorption as standard. Ideal for all educational environments.
Features
– Individual or continuous mounting
– Average rated LED life: >50,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Excellent sound absorption coefficient (full acoustic report available)
– Tested to BS EN ISO 354:2003. Surpasses the recommendations of BB93 in a typical classroom
IP20 | LED | CLASS I | CE
A high performance, linear LED luminaire installed with Class O acoustic absorption as standard. Ideal for all educational environments.
Features
– Individual or continuous mounting
– Average rated LED life: >50,000hrs (L80/B10)
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Excellent sound absorption coefficient (full acoustic report available)
– Tested to BS EN ISO 354:2003. Surpasses the recommendations of BB93 in a typical classroom
IP20 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Emission: Direct
LED output: 5500 – 7000lm
CRI: >80
Material
Body: Sheet steel
Finish: White
Diffuser: Microprism / Opal
Sound absorbing material: 50mm thick CMS melamine foam, density 11kg/m³
Mounting: Suspension
Options
3hr emergency
Other RAL finishes available on request
Through-wiring and infill sections
Joining and suspension kit
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | STANDARD | DALI |
|---|---|---|---|---|---|
| 40W | 4000K | 3097lm | 2200 x 800 | 50123401 | 50123403 |
| 60W | 4000K | 6942lm | 2200 x 800 | 50124001 | 50124003 |
