Crown LED
A decorative yet minimalist, extruded aluminium LED profile luminaire that can be suspended or surface mounted to suit any contemporary interior.
Features
– Attractive modern design
– Homogeneous light distribution - no spotting
– Available in multiple sizes up to Ø1065mm
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Long rated LED life: >72,000hrs (L80/B10)
IP20 | LED | CLASS I | CE
A decorative yet minimalist, extruded aluminium LED profile luminaire that can be suspended or surface mounted to suit any contemporary interior.
Features
– Attractive modern design
– Homogeneous light distribution - no spotting
– Available in multiple sizes up to Ø1065mm
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Long rated LED life: >72,000hrs (L80/B10)
IP20 | LED | CLASS I | CE
A decorative yet minimalist, extruded aluminium LED profile luminaire that can be suspended or surface mounted to suit any contemporary interior.
Features
– Attractive modern design
– Homogeneous light distribution - no spotting
– Available in multiple sizes up to Ø1065mm
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
– Long rated LED life: >72,000hrs (L80/B10)
IP20 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Luminaire output: 1700 – 12250lm
CRI: 83

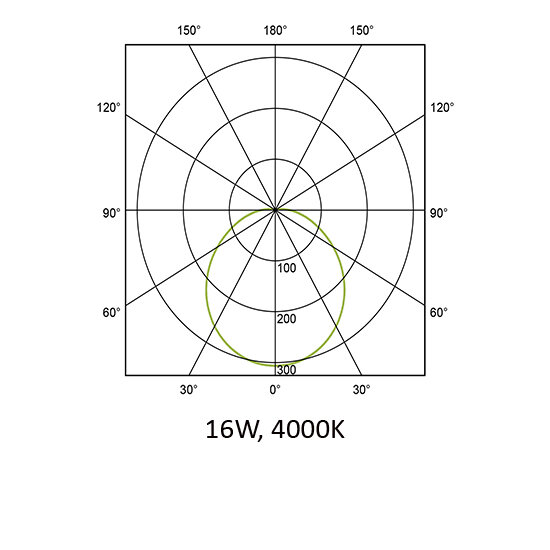

Beam angle: 110°
Material
Body: Aluminium profile
Finish: Grey
Diffuser: Opal PMMA
Mounting: Surface / Suspension
Options
Other RAL colours available
Suspension kit ( x3 -1.5m standard length)
Microprism / opal polycarbonate diffuser
Bluetooth enabled
Internal fuse and LS0H cable
| Product Codes |
|---|

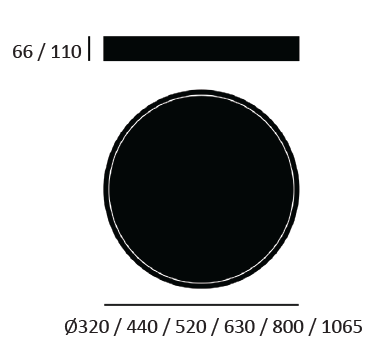

| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI |
|---|---|---|---|---|---|---|---|
| 16W | 3000K | 1700lm | Ø320 x 66 | 60608601 | 60608603 | 60608691 | 60608693 |
| 16W | 4000K | 1750lm | Ø320 x 66 | 60608701 | 60608703 | 60608791 | 60608793 |
| 37W | 3000K | 3760lm | Ø440 x 66 | 60608801 | 60608803 | 60608891 | 60608893 |
| 37W | 4000K | 3870lm | Ø440 x 66 | 60608901 | 60608903 | 60608991 | 60608993 |
| 37W | 3000K | 4030lm | Ø520 x 66 | 60609001 | 60609003 | 60609091 | 60609093 |
| 37W | 4000K | 4150lm | Ø520 x 66 | 60609101 | 60609103 | 60609191 | 60609193 |
| 37W | 3000K | 4400lm | Ø630 x 110 | 60609201 | 60609203 | 60609291 | 60609293 |
| 37W | 4000K | 4530lm | Ø630 x 110 | 60609301 | 60609303 | 60609391 | 60609393 |
| 57W | 3000K | 6180lm | Ø800 x 110 | 60609401 | 60609403 | 60609491 | 60609493 |
| 57W | 4000K | 6370lm | Ø800 x 110 | 60609501 | 60609503 | 60609591 | 60609593 |
| 100W | 3000K | 11880lm | Ø1065 x 110 | 60609601 | 60609603 | 60609691 | 60609693 |
| 100W | 4000K | 12250lm | Ø1065 x 110 | 60609701 | 60609703 | 60609791 | 60609793 |
