Caprice IP LED

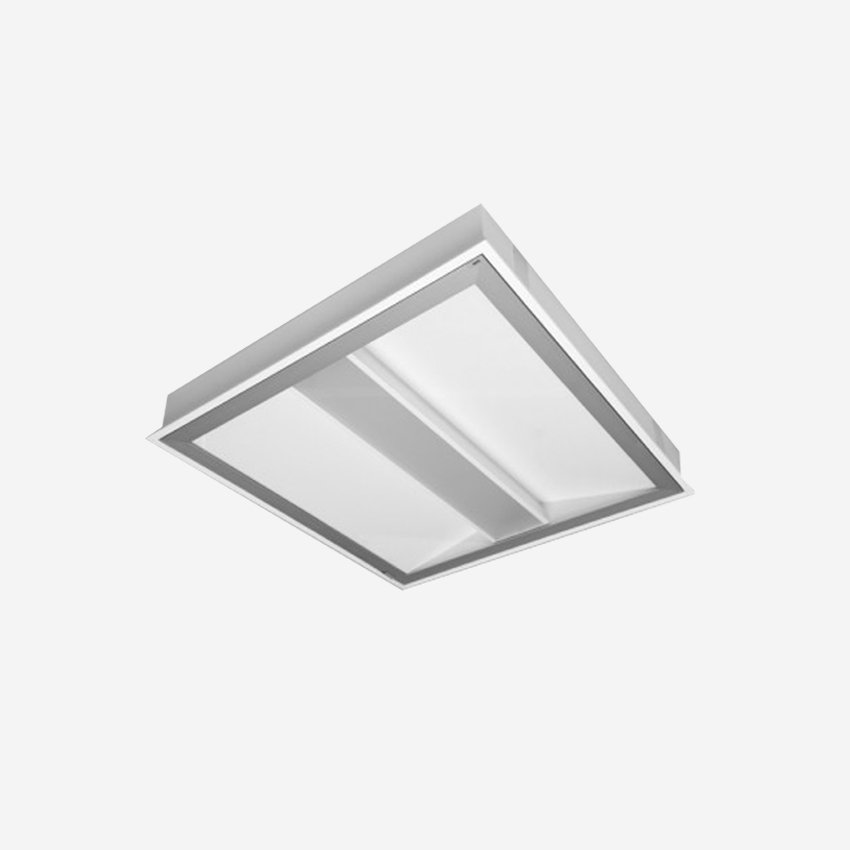

A high output lay-in modular recessed 600×600 IP65 LED luminaire with central flush basket and tempered glass diffuser.
Ideal for clean rooms, pharmaceutical enivornments, consulting rooms and hospital wards.
Features
– Fully LG7 compliant
– Average rated LED life: 60,000hrs (L80/B10)
– High visual comfort – low glare
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– IP65 at the front and rear of luminaire
– Photobiological hazard: RG0
IP65 | IK08 | LED | CLASS I | CE
A high output lay-in modular recessed 600×600 IP65 LED luminaire with central flush basket and tempered glass diffuser.
Ideal for clean rooms, pharmaceutical enivornments, consulting rooms and hospital wards.
Features
– Fully LG7 compliant
– Average rated LED life: 60,000hrs (L80/B10)
– High visual comfort – low glare
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– IP65 at the front and rear of luminaire
– Photobiological hazard: RG0
IP65 | IK08 | LED | CLASS I | CE
A high output lay-in modular recessed 600×600 IP65 LED luminaire with central flush basket and tempered glass diffuser.
Ideal for clean rooms, pharmaceutical enivornments, consulting rooms and hospital wards.
Features
– Fully LG7 compliant
– Average rated LED life: 60,000hrs (L80/B10)
– High visual comfort – low glare
– Optimum colour consistency – 3 step MacAdam ellipse tolerance
– IP65 at the front and rear of luminaire
– Photobiological hazard: RG0
IP65 | IK08 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Emission: Direct and indirect
LED output: 3810 – 7068lm
Luminaire output: 2713 – 5032lm
Luminaire efficiency: 100lm/W
CRI: 80
UGR: 19
Material
Body: Sheet steel
Finish: Powder painted white
Diffuser: Tempered glass
Mounting: Recessed Modula
Options
3hr maintained emergency
2 step MacAdam, CRI:90
Internal fuse and LS0H cable
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI |
|---|---|---|---|---|---|---|---|
| 27W | 3000K | 2713lm | 596 x 596 | 13300101 | 13300103 | 13300191 | 13300193 |
| 26W | 4000K | 2973lm | 596 x 596 | 13300201 | 13300203 | 13300291 | 13300293 |
| 47W | 3000K | 4701lm | 596 x 596 | 13300301 | 13300303 | 13300391 | 13300393 |
| 46W | 4000K | 5032lm | 596 x 596 | 13300401 | 13300403 | 13300491 | 13300493 |
