Bari Micro LED
A high efficiency, compact IP65 LED downlight designed for lighting humid areas such as bathrooms, changing rooms and entrances.
Features
– Long average LED life: >50,000hrs (L80/B20)
– Lamp lumen maintenance factor after 60,000hrs: 80%
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP65 | LED | CLASS I | CE
A high efficiency, compact IP65 LED downlight designed for lighting humid areas such as bathrooms, changing rooms and entrances.
Features
– Long average LED life: >50,000hrs (L80/B20)
– Lamp lumen maintenance factor after 60,000hrs: 80%
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP65 | LED | CLASS I | CE
A high efficiency, compact IP65 LED downlight designed for lighting humid areas such as bathrooms, changing rooms and entrances.
Features
– Long average LED life: >50,000hrs (L80/B20)
– Lamp lumen maintenance factor after 60,000hrs: 80%
– Optimum colour consistency – 3 step MacAdam chromaticity tolerance
IP65 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
LED output: 1400lm
Luminaire output: 1240lm
Luminaire efficiency: ≥89lm/W
CRI: >80

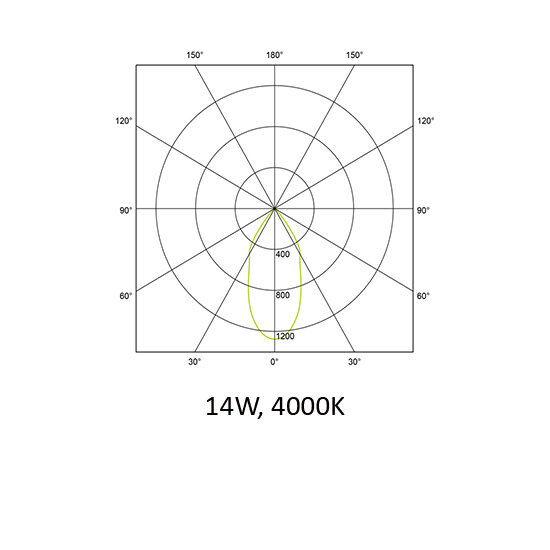

Beam angle: 45°
Material
Body: Die-cast aluminium
Finish: White (RAL 9010)
Diffuser: Clear tempered glass
Reflector: Faceted aluminium
Cut out: ∅72mm
Mounting: Recessed
Options
3hr emergency
Other RAL colours on request
Internal fuse and LS0H cable
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | STANDARD | DALI | EMERGENCY STANDARD | EMERGENCY DALI |
|---|---|---|---|---|---|---|
| 14W | 4000K | 1240lm | 31202001 | 31202003 | 31202091 | 31202093 |
