Avalon LED

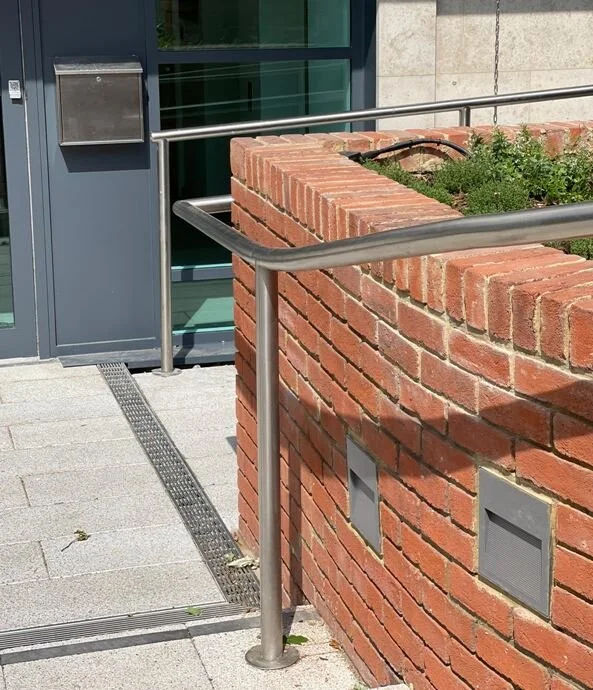

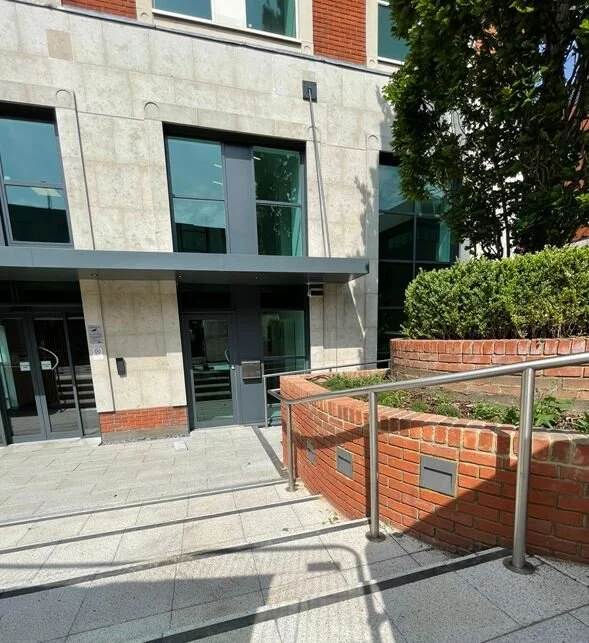

A high quality, die-cast aluminium exterior wall luminaire providing downward illumination.
Ideal for steps, walkways and walls.
Features
– Easy to open and maintain
– High quality construction
– High resistance to oxidation
– Various sizes available, recessed and surface mounting
– Provides illumination without any glare
– Average rated LED life: >60,000hrs (L80/B10)
IP65 | IK09 | LED | CLASS I | CE
A high quality, die-cast aluminium exterior wall luminaire providing downward illumination.
Ideal for steps, walkways and walls.
Features
– Easy to open and maintain
– High quality construction
– High resistance to oxidation
– Various sizes available, recessed and surface mounting
– Provides illumination without any glare
– Average rated LED life: >60,000hrs (L80/B10)
IP65 | IK09 | LED | CLASS I | CE
A high quality, die-cast aluminium exterior wall luminaire providing downward illumination.
Ideal for steps, walkways and walls.
Features
– Easy to open and maintain
– High quality construction
– High resistance to oxidation
– Various sizes available, recessed and surface mounting
– Provides illumination without any glare
– Average rated LED life: >60,000hrs (L80/B10)
IP65 | IK09 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Distribution: Asymmetric
Luminaire output: 408lm – 1344lm
CRI: >90
Material
Body: Die-cast aluminium
Finish: Light grey/ Anthracite grey
Diffuser: 3mm thick soda-lime tempered glass, microprismatic
External fixings: Stainless steel
Mounting: Recessed/ Surface
Wiring: Silicone Ø10/14mm cable gland
Options
500mm & 800mm high versions
DALI
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DIMENSIONS | FINISH | RECESSED | SURFACE |
|---|---|---|---|---|---|---|
| 3.5W | 3000K | 408lm | 120 x 120 | Anthracite grey | 71701301 | 71703001 |
| 3.5W | 4000K | 448lm | 120 x 120 | Anthracite grey | 71701501 | 71703201 |
| 10W | 3000K | 1224lm | 240 x 120 | Anthracite grey | 71701701 | 71703401 |
| 10W | 4000K | 1344lm | 240 x 120 | Anthracite grey | 71701901 | 71703601 |
| 10W | 3000K | 1224lm | 200 x 200 | Anthracite grey | 71702101 | 71703801 |
| 10W | 4000K | 1344lm | 200 x 200 | Anthracite grey | 71702301 | 71704001 |
| 3.5W | 3000K | 408lm | 120 x 120 | Light grey | 71701401 | 71703101 |
| 3.5W | 4000K | 448lm | 120 x 120 | Light grey | 71701601 | 71703301 |
| 10W | 3000K | 1224lm | 240 x 120 | Light grey | 71701801 | 71703501 |
| 10W | 4000K | 1344lm | 240 x 120 | Light grey | 71702001 | 71703701 |
| 10W | 3000K | 1224lm | 200 x 200 | Light grey | 71702201 | 71703901 |
| 10W | 4000K | 1344lm | 200 x 200 | Light grey | 71702401 | 71704101 |
