Aleane LED
An extra low profile, vandal and rip-out resistant, architectural luminaire with anti-graffiti protection.

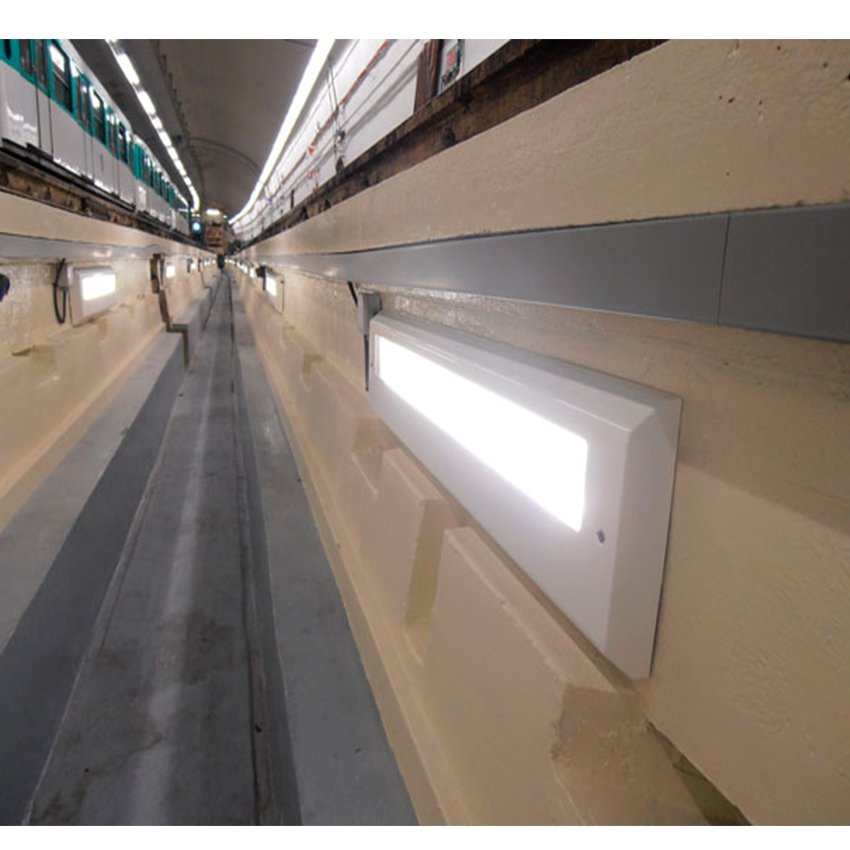

Also available with asymmetrical light distribution making it ideal for pits.
Features
– High impact resistance: IK10++ / 80 joules
– Anti-graffiti protection
– Individual or continuous mounting
– Non-corrosive
– Optimum colour consistency—3 step MacAdam ellipse tolerance
– Average rated LED life: >72,000hrs (L80/B10)
– Photobiological hazard: RG0
IP55 | IK10 | LED | CLASS I | CE
An extra low profile, vandal and rip-out resistant, architectural luminaire with anti-graffiti protection.
Also available with asymmetrical light distribution making it ideal for pits.
Features
– High impact resistance: IK10++ / 80 joules
– Anti-graffiti protection
– Individual or continuous mounting
– Non-corrosive
– Optimum colour consistency—3 step MacAdam ellipse tolerance
– Average rated LED life: >72,000hrs (L80/B10)
– Photobiological hazard: RG0
IP55 | IK10 | LED | CLASS I | CE
An extra low profile, vandal and rip-out resistant, architectural luminaire with anti-graffiti protection.
Also available with asymmetrical light distribution making it ideal for pits.
Features
– High impact resistance: IK10++ / 80 joules
– Anti-graffiti protection
– Individual or continuous mounting
– Non-corrosive
– Optimum colour consistency—3 step MacAdam ellipse tolerance
– Average rated LED life: >72,000hrs (L80/B10)
– Photobiological hazard: RG0
IP55 | IK10 | LED | CLASS I | CE
| Technical Information |
|---|
Performance
Light source: LED
Distribution: Symmetric/ Asymmetric
Luminaire output: 2000 – 7600lm (Sym)/ 1300 – 2900lm (Asym)
Luminaire efficiency: ≥107lm/W (Sym)/ ≥71lm/W (Asym)
CRI: >80
Material
Body: Zinc-plated steel
Finish: White (RAL 9003)
Diffuser: Opal polycarbonate TP(a)
External fixings: M6 stainless steel tamper-proof screws
Wiring: 3x Ø20.5mm – Fixings outside the sealed body
Mounting: Surface
Options
Class II version
316L stainless steel version for marine environments
Blank infill sections for running cables and through-wiring
| Product Codes |
|---|
| LAMP | COLOUR TEMP | DELIVERED LUMENS | DISTRIBUTION | DIMENSIONS | STANDARD | DALI |
|---|
